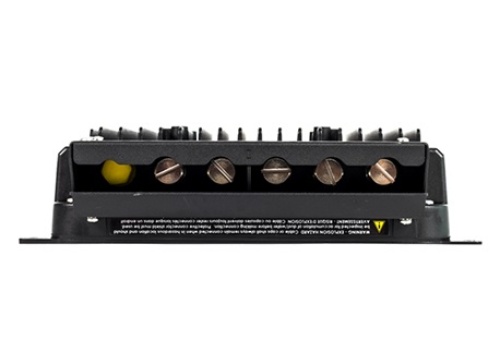

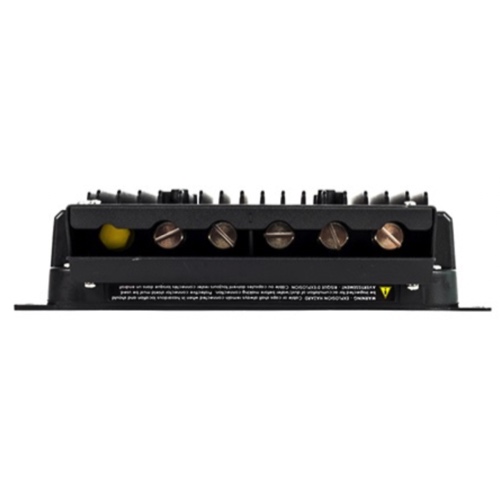

Beijer 100-0981 Gateway BoX2 extreme SC
Normally In Stock
Code: 225074
Beijer 100-0981 Gateway BoX2 extreme SC BoX2 extreme SC - IIoT with CODESYS (IEC 61131-3) runtime EtherCAT/ModbusTCP & RTU. i.MX6Quad, Quad ARM Cortex-A9, 1.0 GHz CPU; 2 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 2x 100 MB Ethernet (8-pin M12), 2x galvanically isolated physical 8-pin M12 serial ports (RS232, RS422, RS485, CAN), 24 VDC power supply (18-32 VDC), -30 to 70 C operating temperature, IP66 ingress, CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc), DNV approvals. Includes iX Runtime. WEC2013 Professional. Beijer-branded. Black, Beijer-branded front.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3480.96
Sale Price
$2900.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Beijer 100-0981 Gateway BoX2 extreme SC BoX2 extreme SC - IIoT with CODESYS (IEC 61131-3) runtime EtherCAT/ModbusTCP & RTU. i.MX6Quad, Quad ARM Cortex-A9, 1.0 GHz CPU; 2 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 2x 100 MB Ethernet (8-pin M12), 2x galvanically isolated physical 8-pin M12 serial ports (RS232, RS422, RS485, CAN), 24 VDC power supply (18-32 VDC), -30 to 70 C operating temperature, IP66 ingress, CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc), DNV approvals. Includes iX Runtime. WEC2013 Professional. Beijer-branded. Black, Beijer-branded front.
Specifications
Component
Gateway
Gateway Voltage
24 VDC
Gateway Programming
CODESYS
Gateway Processor
I.Mx6quad
Gateway Processor
Quad ARM Cortex A9 CPU
Gateway RAM
2 GB
Classification
Class 1 Div 2
Manufacturer
Beijer
Sub Component
Gateway Box2 Extreme SC
Features
BoX2 solves the challenge of finding smart ways to access data and bridges the gap between the worlds of industrial automation and IT.
It makes information from a deep industrial level easily accessible in a structured cloud-based data environment
BoX2 facilitates data exchange, and transfers data securely to the cloud for remote access and analysis.
BoX2 allows you to create mobile solutions and add local control on the edge of the cloud to perform corrective measures on a machine.
