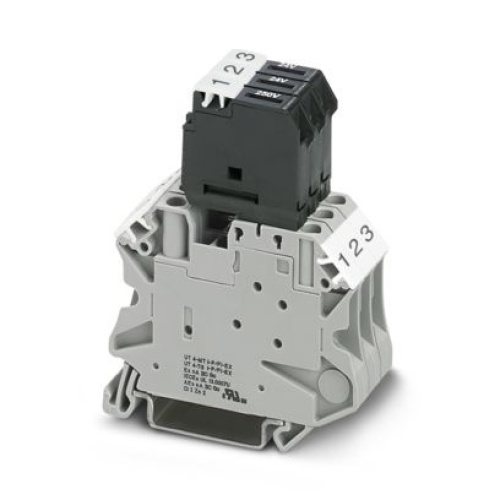

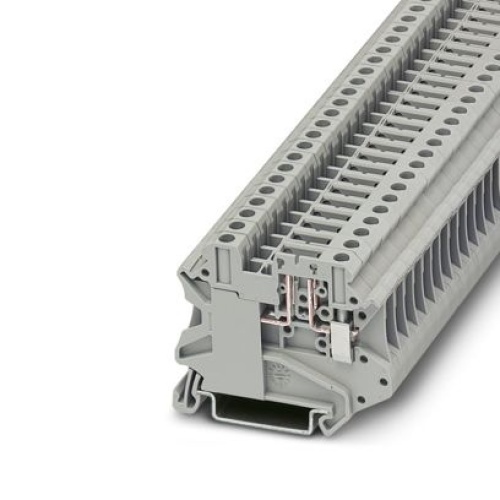

UT 4-TG-P/P Phoenix Contact 3046168 Fuse-Terminal Block UT 4-TG-P/P Gray
UT 4-TG-P/P Phoenix Contact 3046168 Phoenix Contact UT 4-TG-P/P. Gray Removable Disconnect Fuse and Terminal Block Base (With Test Socket screws). 6.2mm Single through screw connection to use with Plug-ins sold seperately, 500V, 20A, 10-26AWG (Sold in packs of 50)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $4.62
Sale Price:
$2.83
Phoenix Contact 3046168 Phoenix Contact UT 4-TG-P/P. Gray Removable Disconnect Fuse and Terminal Block Base (With Test Socket screws). 6.2mm Single through screw connection to use with Plug-ins sold seperately, 500V, 20A, 10-26AWG (Sold in packs of 50)
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 500 Volt |
| Terminal Block Fused | Fused |
| Terminal Block Width | 6.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 2 |
| Terminal Block Component Color | Gray |
| Terminal Block Connection Method | Screw Connection |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Max Wire Size | 10 |
| Terminal Block Min Wire Size | 26 |
| Terminal Block With Test Disconnects | With Test Socket Screws |
| Terminal Block Disconnect | Removable Disconnect |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Terminal Block Amperage | 20 Amp |
| Sub Component | Disconnect terminal block |
