Enclosure Light Accessories

Enclosure lighting is often necessary when overhead room lighting is inadequate and often obstructed by the enclosure itself. Enclosure lights can help to properly illuminate dim areas within the enclosure for maintenance, monitoring and component installation. Hazardous location lights provide enclosure lighting in hazardous environments. The lights are rated to operate in Class 1, Division 2 hazardous areas. Class 1 refers to facilities that deal with flammable gases, vapors and liquids. Division 2 specifies that the flammable materials are processed, used or handled in the defined hazardous location, but are not normally present in concentrations high enough to be ignitable.

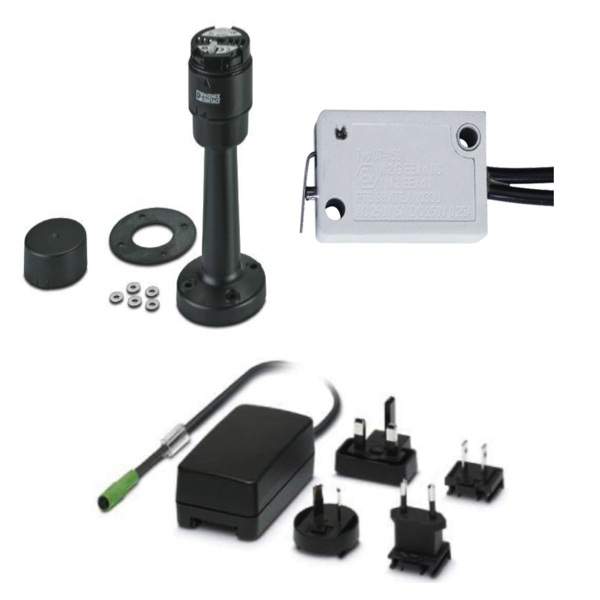

Hoffman Hazardous Location Door Switches are designed to be used with Hoffman Hazardous Location LED Lights in Class1, Division 2 hazardous areas. The kit allows the door switch to be mounted and still maintain the enclosure rating up to UL Type 4X and the included 5 ft. connect cable allows ease of wiring to the enclosure back panel. The switch activates the LED light when the enclosure door is opened and can be mounted on any flange of the enclosure.
Phoenix Contact Mains Plugs supply power to class 400 LED enclosure lights. The plug-in power supply unit includes country-specific plug adapters (USA, Europe, Great Britain and Australia) for adaption to the installation location.
Phoenix Contact Signal Tower Connection Elements are designed to electrically connect a modular signal tower. A bayonet locking system establishes the electrical and mechanical connection between the elements. A signal tower may comprise any combination of up to five signal elements.
Products
Common modifications or accessories that are used to enhance electrical cabinets.
Lighting kits. Lighting kits are often used in outdoor applications. There are many different styles of lighting kits that can be used, but LEDs have become the preferred lighting solution in the past several years.
Pressure switches. Pressure switches operate on a spring and react to the cabinet door opening and closing. They can be used for lights, intrusions alarms and exhaust fans.
Passive air vents. Passive air vents allow natural air circulation to flow through a cabinet providing proper ventilation.
Enclosure fans. Enclosure air fans are used when more ventilation is required. The size of the fan will depend on the size of the enclosure as well as the amount of air that needs to be circulated.
Air conditioners. Air conditioners are used when ambient air circulation is inadequate to cool the cabinet. The air conditioner size will depend on the enclosure size, ambient air temperature and heat generated within the cabinet.
Heaters. Heaters are used when a cabinet is located in areas that may be exposed to cold temperatures.
Locking mechanisms. Locking mechanisms are used to secure cabinets.
Conduit hole seals. Conduit hole seals are used on cabinets that have holes that need to be plugged after conduit has been removed.
