Hoffman COMPACT Series 2 Pendant Arm System

filter_list

HMI enclosures are designed specifically for the wide range of Human Machine Interface applications found in industrial settings. It is important to have customization options like removable front plates that allow for easy installation of HMI components, optional door panels that can be mounted anywhere and cutout options where needed. Some enclosures are designed to enclose, protect and suspend lightweight HMI devices. HMI enclosures should always be rated to protect sensitive systems from the sometimes harsh environments found in industrial settings. This would include protection against moisture, chemicals and dirt, as well as, temperature variations.

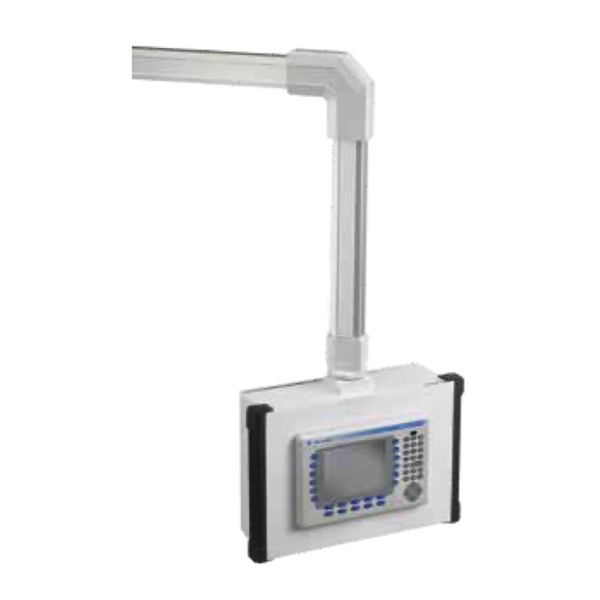

Hoffman COMPACT Series 2 pendant arm systems allow users to easily move controls into and out of position as needed. They can be mounted to a machine, wall or floor. With a maximum load of 101 pounds at 3.3 feet, the COMPACT Series 2 offers superior load-bearing capacity and functional reliability. It is recommended for use with CC2000, CC4000, INLINE and CONCEPT HMI enclosures as well as consolets.

Hoffman CONCEPT HMI landscape-oriented steel enclosures are ideal for applications that utilize flat-screens, pushbuttons and other similar devices. These enclosures are made of light gray, 14 gauge steel and have a range of customization options. The enclosures have a predrilled hole in the top for pendant arm mounting and be can mounted on a pedestal when inverted. The removable front plate allows for easy installation of HMI components and the enclosure accommodates cutouts anywhere they are needed. Comfort grip handles extend the length of the profile and a hinged rear door has a single-point latch.

Sort By:
Hoffman CCS1KBT COMPACT HMI Series2 Keyboard Tray
Hoffman CCS1KBT COMPACT HMI Series2 Keyboard Tray
$304.20
Hoffman CCS1KBT Keyboard Tray for COMPACT Series 2 Pendant Arm. Tray attaches to keyboard frame. Provides a surface for a PC mouse as well as a platform for a keyboard.
Hoffman CCS1KBF COMPACT HMI Series2 Keyboard Frame
Hoffman CCS1KBF COMPACT HMI Series2 Keyboard Frame
$287.30
Hoffman CCS1KBF Keyboard Frame for COMPACT Series 2 Pendant Arm. Mounts to monitor platform. Frame locks at desired position by tightening knobs. Chrome plated finish.
Hoffman CCS1MP COMPACT HMI Series2 Monitor Platform
Hoffman CCS1MP COMPACT HMI Series2 Monitor Platform
$379.60
Hoffman CCS1MP Monitor Platform for COMPACT Series 2 Pendant Arm. Platform attaches to pendant arm to provide a surface for a monitor. Adjustable stops hold monitor securely in place.
Hoffman CCS2PB COMPACT HMI Series2 Pedestal Base
Hoffman CCS2PB COMPACT HMI Series2 Pedestal Base
$1185.60
Hoffman CCS2PB Pedestal Base for COMPACT Series 2 Pendant Arm. Base is cast aluminum one-piece construction finished with RAL 7035 light-gray textured polyester powder paint. Includes all hardware for attaching tubes.
Hoffman CCS2ESTLG COMPACT HMI Series2 Swivel Tilt Elbow 90 Degree
Hoffman CCS2ESTLG COMPACT HMI Series2 Swivel Tilt Elbow 90 Degree
$1901.90
Hoffman CCS2ESTLG Swivel Tilt 90-Degree Elbow for COMPACT Series 2 Pendant Arm. Mounts between pendant arm and HMI enclosure to provide both swivel and tilt options for the machine operator.
Hoffman CCS2STLG COMPACT HMI Series2 Swivel Tilt Straight
Hoffman CCS2STLG COMPACT HMI Series2 Swivel Tilt Straight
$1392.30
Hoffman CCS2STLG Swivel Tilt Straight for COMPACT Series 2 Pendant Arm. Mounts between pendant arm and HMI enclosure to provide both swivel and tilt options for the machine operator. Swivel allows 300-degree maximum rotation.
Hoffman CCS2RBB15LG COMPACT HMI Series2 Rotational Base Bracket 15 Degree
Hoffman CCS2RBB15LG COMPACT HMI Series2 Rotational Base Bracket 15 Degree
$815.10
Hoffman CCS2RBB15LG Rotational Base Bracket (15-Degree) for COMPACT Series 2 Pendant Arm. 300 degree truning range. Enclosure is mounted at a 15-degree incline angle.
Hoffman CCS2RBBLG COMPACT HMI Series2 Rotational Base Bracket
Hoffman CCS2RBBLG COMPACT HMI Series2 Rotational Base Bracket
$660.40
Hoffman CCS2RBBLG Rotational Base Bracket for COMPACT Series 2 Pendant Arm. 300 degree truning range. Cast aluminum finished in RAL 7035 light-gray polyester powder paint.
Hoffman CCS2RBLG COMPACT HMI Series2 Rotational Base
Hoffman CCS2RBLG COMPACT HMI Series2 Rotational Base
$817.70
Hoffman CCS2RBLG Rotational Base for COMPACT Series 2 Pendant Arm. 300 degree truning range. Cast aluminum finished in RAL 7035 light-gray polyester powder paint.
Hoffman CCS2WFBLG COMPACT HMI Series2 Wall Flange Base Bracket
Hoffman CCS2WFBLG COMPACT HMI Series2 Wall Flange Base Bracket
$356.20
Hoffman CCS2WFBLG COMPACT Series 2 Pendant Arm Wall Flange (Base Bracket). Stationary Base Bracket or Wall Flange mounts to floor or wall and connects to tube for HMI system.
Hoffman CCS2FEC15LG COMPACT HMI Series2 Flange Elbow Coupling 15 Degree
Hoffman CCS2FEC15LG COMPACT HMI Series2 Flange Elbow Coupling 15 Degree
$865.80
Hoffman CCS2FEC15LG COMPACT Series 2 Pendant Arm Flange Elbow Coupling (15-Degree). Flange Elbow for mounting enclosure at 15-degree incline angle to tube at 90 degrees with 300 degree turning range. Maintenance-free bearing is steel and polyamide.
Hoffman CCS2FECLG COMPACT HMI Series2 Flange Elbow Coupling
Hoffman CCS2FECLG COMPACT HMI Series2 Flange Elbow Coupling
$677.30
Hoffman CCS2FECLG COMPACT Series 2 Pendant Arm Flange Elbow Coupling. Flange Elbow to connect HMI enclosure to tube at 90 degrees and can rotate 300 degrees. Maintenance-free bearing is steel and polyamide.
Hoffman CCS2FC15LG COMPACT HMI Series2 Flange Coupling 15 Degree
Hoffman CCS2FC15LG COMPACT HMI Series2 Flange Coupling 15 Degree
$677.30
Hoffman CCS2FC15LG Flange Coupling (15 degree) for COMPACT Series 2 Pendant Arm. Made from cast aluminum with RAL 7035 light-gray polyester powder paint finsh. Includes gasket and hardware including mounting fasteners.
Hoffman CCS2FCLG COMPACT HMI Series2 Flange Coupling
Hoffman CCS2FCLG COMPACT HMI Series2 Flange Coupling
$544.70
Hoffman CCS2FCLG Flange Coupling for COMPACT Series 2 Pendant Arm. Made from cast aluminum with RAL 7035 light-gray polyester powder paint finsh. Includes gasket and hardware including mounting fasteners.
Hoffman CCS2EHDLG COMPACT HMI Series2 Heavy Dut Elbow
Hoffman CCS2EHDLG COMPACT HMI Series2 Heavy Dut Elbow
$370.50
Hoffman CCS2EHDLG COMPACT Series 2 Pendant Arm Heavy Duty Elbow. Elbow for connecting two tube at a 90 degree angle for pendant arm system.
Hoffman CCS2IJLG COMPACT HMI Series2 Intermediate Joint
Hoffman CCS2IJLG COMPACT HMI Series2 Intermediate Joint
$989.30
Hoffman CCS2IJLG COMPACT Series 2 Pendant Arm Intermediate Joint. Mount tube to tube to allow 300 degree rotation at connection on pendant arm.
Hoffman CCS2WJHLG COMPACT HMI Series2 Wall Joint Horizontal
Hoffman CCS2WJHLG COMPACT HMI Series2 Wall Joint Horizontal
$898.30
Hoffman CCS2WJHLG Horizontal Wall Joint for COMPACT Series 2 Pendant Arm. Includes access plates for easy to wire installation. 300 degree truning range. Cast aluminum with RAL 7035 light-gray polyester powder paint finish. Includes gasket and hardware.
Hoffman CCS2WJVLG COMPACT HMI Series2 Wall Joint 90 Degree
Hoffman CCS2WJVLG COMPACT HMI Series2 Wall Joint 90 Degree
$839.80
Hoffman CCS2WJVLG Vertical Wall Joint (90 degree) for COMPACT Series 2 Pendant Arm. Vertical joint includes access plate for easy to wire installation. 300 degree truning range. Includes gasket and hardware.
Hoffman CCS2SJLG COMPACT HMI Series2 Pendant Arm Set-Up Joint
Hoffman CCS2SJLG COMPACT HMI Series2 Pendant Arm Set-Up Joint
$1231.10
Hoffman CCS2SJLG Set-up Joint for COMPACT Series 2 Pendant Arm. Joint includes access plate for easy to wire installation. 300 degree truning range. Includes gasket and hardware.
Hoffman CCS2T20 COMPACT HMI Series2 Pendant Arm 1500 mm
Hoffman CCS2T20 COMPACT HMI Series2 Pendant Arm 1500 mm
$403.00
Hoffman CCS2T5 Hollow Aluminum Extrusion Tube for COMPACT Series 2 Pendant Arm, 1500 mm or 59" long for COMPACT Series 2 with external demensions of 1.77" x 2.36". Connection components fastened to suport arm with set screws.
Hoffman CCS2T10 COMPACT HMI Series2 Pendant Arm 1000 mm
Hoffman CCS2T10 COMPACT HMI Series2 Pendant Arm 1000 mm
$291.20
Hoffman CCS2T5 Hollow Aluminum Extrusion Tube for COMPACT Series 2 Pendant Arm, 1000 mm or 39.37" long for COMPACT Series 2 with external demensions of 1.77" x 2.36". Connection components fastened to suport arm with set screws.
Hoffman CCS2T5 COMPACT HMI Series2 Pendant Arm 500 mm
Hoffman CCS2T5 COMPACT HMI Series2 Pendant Arm 500 mm
$144.30
Hoffman CCS2T5 Hollow Aluminum Extrusion Tube for COMPACT Series 2 Pendant Arm, 500 mm or 19" long for COMPACT Series 2 with external demensions of 1.77" x 2.36". Connection components fastened to suport arm with set screws.



Human Machine Interface (HMI) is a software interface that allows operators to interact with various pieces of electrical hardware and controls systems. HMI typically utilizes monitors or screens to display information, which are referred to as HMI screens. The screens are not the actual HMI, but are a tool used to display HMI software. For example, electrical enclosures often have screens mounted on the outside of them to provide users with information about ongoing process and to allow users to make changes to the system.

Operator Interface Terminal (OIT) typically displays basic information about the electrical hardware that it is attached to. It provides only local information about the environment it is interfacing with and allows control and monitoring for that one piece of hardware, not an entire system.
