Enclosure Door Installation Accessories
Enclosure doors may need to be replaced from time to time and it is important to order the correct replacement door that matches the existing enclosure so that the NEMA rating is maintained. When additional security is needed, replacement doors may also include padlocking handles. Enclosure door latches, handles and locks play a big part in enclosure security and safety. In many applications, the value of the equipment housed in the enclosure is significant enough to justify the cost of additional security features. Also, any unauthorized or accidental operation of a control system could have severe consequences. To better secure enclosure doors, there are key locking door latches and key locking wing knobs, as well as, handles that have padlocks, key locks and combinations locks.

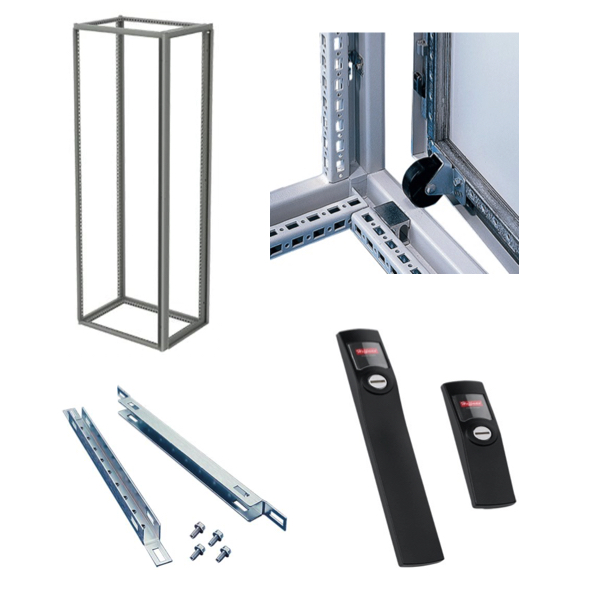

Hoffman Side Door Adapters are 14 gauge steel and allow mounting of a standard door to the side of an enclosure. When mounted to the enclosure, they maintain the enclosure environmental integrity.
Products
More Information about Enclosure Door Installation Accessories
Hoffman Flush Bezels With Inserts can be used on any solid, window or disconnect door when a low-profile, tool-to-open operating mechanism is needed. They are provided with a screwdriver slot insert and are made of black plastic.
Hoffman PROLINE G2 Door Bar Grid Straps are 16 gauge mild steel and mount accessories to the door. Straps mount to the door bar and have a load rating of 100 pounds.
Hoffman Door Support Roller Kits support and align heavy doors. The kits are suitable for all solid and glass window doors. They are not recommended for use on solid doors with door bars removed or polycarbonate window doors.
Maintaining NEMA 4 Rating When Making Enclosure Penetrations
Cutouts are very common when modifying enclosures for push buttons, indication lights, conduit entries or mounting hardware. Cutting into an enclosure runs the risk of eliminating the protective nature of the NEMA rated attributes. Proper steps must be followed in order to preserve the NEMA rating of an enclosure.
Devices mounted to the enclosure must have the same NEMA rating as the enclosure. This means that if the devices are installed to the manufacturer's specifications, they will be able to maintain the NEMA rating of the enclosure.
Water tight conduit hubs must be used when running wire through a cutout in an enclosure. There are many different types of conduit hubs that are used to secure conduit to an enclosure. However, only certain conduit hubs are rated for a watertight seal. By using water tight hubs, the NEMA rating of the enclosure is maintained.
Bonded washers are necessary when mounting hardware to an enclosure. If standard mounting hardware is used, the NEMA rating of the enclosure will no longer be maintained. Bonded washers have rubber gaskets that make a watertight seal around the drilled hole. It is also important to make sure the material used for the bonded washer matches the material of the enclosure. Stainless steel enclosures require stainless steel bonded washers.
