Molded Case Circuit Breakers (H Frame)

filter_list

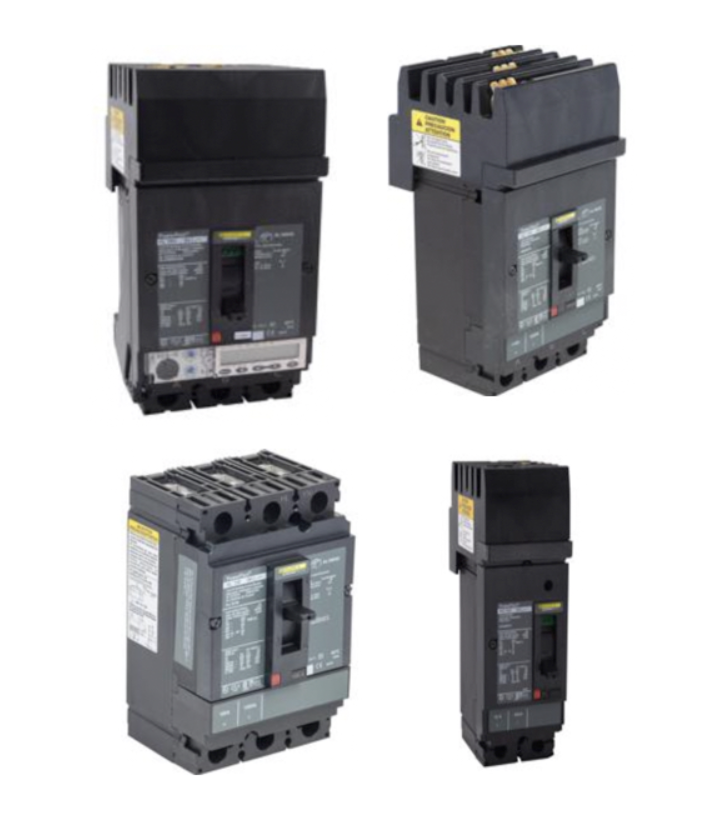

Square D by Schneider Electric’s PowerPact Multistandard circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short-circuit fault. They feature an over-center toggle mechanism providing quick-make, quick-break operation. Internal cross-bars provide common opening and closing of all poles with a single handle. The circuit breaker handle can assume any of three positions, ON, tripped or OFF. The center tripped position provides positive visual indication that the circuit breaker has tripped.

PowerPact H-frame circuit breakers are available in either thermal-magnetic or Micrologic electronic trip units.Thermal-magnetic trip units contain individual thermal (overload) and instantaneous (short-circuit) sensing elements in each pole. Micrologic electronic trip units provide adjustable protection settings for greater system flexibility. They allow users to monitor both power and energy. Through direct access to information and networking using open protocols, PowerPact circuit breakers with Micrologic trip units let users optimize the management of their electrical installations. Using Micrologic trip unit sensors and intelligence, PowerPact H-frame circuit breakers provide access to measurements of all the main electrical parameters on the built-in screen, on a dedicated front display module or through the communication network. Integration of measurement functions provide users with operating assistance functions including, time-stamped event tables and histories, alarms tripped by user-selected measurement values and maintenance indicators.

Products

Sort By:
Schneider Electric HJA260354 Circuit breaker, PowerPact H, I Line, thermal magnetic, 35A, 2 pole, 600V, 25kA, phase BC
Schneider Electric HJA260354 Circuit breaker, PowerPact H, I Line, thermal magnetic, 35A, 2 pole, 600V, 25kA, phase BC
$1159.94 $2383.50
Schneider HJA260354 Circuit breaker 35 A 2P 80 % I-Line UL Listed, CE, IEC, CSA PowerPact H J 400 A 850 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C BC 250 V DC, 600 V AC I-Line connection line, Lugs load 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC,
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HLA260152 Circuit breaker, PowerPact H, I Line, thermal magnetic, 15A, 2 pole, 600V, 50kA, phase AC
Schneider Electric HLA260152 Circuit breaker, PowerPact H, I Line, thermal magnetic, 15A, 2 pole, 600V, 50kA, phase AC
$2718.80 $5586.75
Schneider HLA260152 Circuit breaker 15 A 2P 80 % I-Line CSA, UL Listed, CE, IEC PowerPact H L 350 A 750 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.36 in (110.74 mm 104 °F (40 °C AC 250 V DC, 600 V AC, 500 V DC I-Line connection line, Lugs load 20 kA 250 V DC, 50 kA 500 V DC, 125 kA
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HGA260804 Circuit breaker, PowerPact H, I Line, thermal magnetic, 80A, 2 pole, 600V, 18kA, phase BC
Schneider Electric HGA260804 Circuit breaker, PowerPact H, I Line, thermal magnetic, 80A, 2 pole, 600V, 18kA, phase BC
$1707.05 $3507.75
Schneider HGA260804 Circuit breaker 80 A 2P 80 % I-Line CSA, CE, UL Listed, IEC PowerPact H G 800 A 1450 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C BC 250 V DC, 600 V AC, 500 V DC I-Line connection line, Lugs load 20 kA 500 V DC, 65 kA 240 V AC, 35 kA
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HGA260352 Circuit breaker, PowerPact H, I Line, thermal magnetic, 35A, 2 pole, 600V, 18kA, phase AC
Schneider Electric HGA260352 Circuit breaker, PowerPact H, I Line, thermal magnetic, 35A, 2 pole, 600V, 18kA, phase AC
$1465.06 $3010.50
Schneider HGA260352 Circuit breaker 35 A 2P 80 % I-Line CE, IEC, UL Listed, CSA PowerPact H G 400 A 850 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C AC 250 V DC, 600 V AC, 500 V DC I-Line connection line, Lugs load 20 kA 500 V DC, 65 kA 240 V AC, 35 kA 4
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HDA261505 Circuit breaker, PowerPact H, I Line, thermal magnetic, 150A, 2 pole, 600V, 14kA, phase CA
Schneider Electric HDA261505 Circuit breaker, PowerPact H, I Line, thermal magnetic, 150A, 2 pole, 600V, 14kA, phase CA
$2403.44 $4938.75
Schneider HDA261505 Circuit breaker 150 A 2P 80 % I-Line CE, UL Listed, CSA, IEC PowerPact H D 900 A 1700 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C CA 250 V DC, 600 V AC I-Line connection line, Lugs load 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC,
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HDA260451 Circuit breaker, PowerPact H, I Line, thermal magnetic, 45A, 2 pole, 600V, 14kA, phase AB
Schneider Electric HDA260451 Circuit breaker, PowerPact H, I Line, thermal magnetic, 45A, 2 pole, 600V, 14kA, phase AB
$984.37 $2022.75
Schneider HDA260451 Circuit breaker 45 A 2P 80 % I-Line CSA, UL Listed, CE, IEC PowerPact H D 400 A 850 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C AB 250 V DC, 600 V AC I-Line connection line, Lugs load 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 2
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HLA36045 Circuit breaker, PowerPact H, I Line, thermal magnetic, 45A, 3 pole, 600V, 50kA, phase ABC
Schneider Electric HLA36045 Circuit breaker, PowerPact H, I Line, thermal magnetic, 45A, 3 pole, 600V, 50kA, phase ABC
$2184.83 $4489.50
Schneider HLA36045 Circuit breaker 45 A 3P 80 % I-Line UL Listed, IEC, CSA, CE PowerPact H L 400 A 850 A 9.73 in (247.14 mm 4.48 in (113.79 mm 4.36 in (110.74 mm 104 °F (40 °C ABC 250 V DC, 600 V AC, 500 V DC I-Line connection line, Lugs load 20 kA 250 V DC, 50 kA 500 V DC, 125 k
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HGA261254 Circuit breaker, PowerPact H, I Line, thermal magnetic, 125A, 2 pole, 600V, 18kA, phase BC
Schneider Electric HGA261254 Circuit breaker, PowerPact H, I Line, thermal magnetic, 125A, 2 pole, 600V, 18kA, phase BC
$5275.54 $10840.50
Schneider HGA261254 Circuit breaker 125 A 2P 80 % I-Line CE, UL Listed, CSA, IEC PowerPact H G 900 A 1700 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C BC 250 V DC, 600 V AC, 500 V DC I-Line connection line, Lugs load 20 kA 500 V DC, 65 kA 240 V AC, 35 kA
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HDA260405 Circuit breaker, PowerPact H, I Line, thermal magnetic, 40A, 2 pole, 600V, 14kA, phase CA
Schneider Electric HDA260405 Circuit breaker, PowerPact H, I Line, thermal magnetic, 40A, 2 pole, 600V, 14kA, phase CA
$984.37 $2022.75
Schneider HDA260405 Circuit breaker 40 A 2P 80 % I-Line CE, UL Listed, CSA, IEC PowerPact H D 400 A 850 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C CA 250 V DC, 600 V AC I-Line connection line, Lugs load 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 2
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HLA36025 Circuit breaker, PowerPact H, I Line, thermal magnetic, 25A, 3 pole, 600V, 50kA, phase ABC
Schneider Electric HLA36025 Circuit breaker, PowerPact H, I Line, thermal magnetic, 25A, 3 pole, 600V, 50kA, phase ABC
$2184.83 $4489.50
Schneider HLA36025 Circuit breaker 25 A 3P 80 % I-Line IEC, UL Listed, CSA, CE PowerPact H L 350 A 750 A 9.73 in (247.14 mm 4.48 in (113.79 mm 4.36 in (110.74 mm 104 °F (40 °C ABC 250 V DC, 600 V AC, 500 V DC I-Line connection line, Lugs load 20 kA 250 V DC, 50 kA 500 V DC, 125 k
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HJA260804 Circuit breaker, PowerPact H, I Line, thermal magnetic, 80A, 2 pole, 600V, 25kA, phase BC
Schneider Electric HJA260804 Circuit breaker, PowerPact H, I Line, thermal magnetic, 80A, 2 pole, 600V, 25kA, phase BC
$1331.48 $2736.00
Schneider HJA260804 Circuit breaker 80 A 2P 80 % I-Line CSA, UL Listed, CE, IEC PowerPact H J 800 A 1450 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C BC 250 V DC, 600 V AC I-Line connection line, Lugs load 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC,
+ Add to Job + Add to Favorites + Add to Quick Quote
Schneider Electric HJA260351 Circuit breaker, PowerPact H, I Line, thermal magnetic, 35A, 2 pole, 600V, 25kA, phase AB
Schneider Electric HJA260351 Circuit breaker, PowerPact H, I Line, thermal magnetic, 35A, 2 pole, 600V, 25kA, phase AB
$2609.87 $5362.88
Schneider HJA260351 Circuit breaker 35 A 2P 80 % I-Line CSA, CE, UL Listed, IEC PowerPact H J 400 A 850 A 9.73 in (247.14 mm 2.94 in (74.68 mm 4.8 in (121.92 mm 104 °F (40 °C AB 250 V DC, 600 V AC I-Line connection line, Lugs load 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC,
+ Add to Job + Add to Favorites + Add to Quick Quote



What is a Circuit Breaker?

There are two different types of technologies that are commonly used in circuit breakers.

Magnetic Breakers

Magnetic Breakers are designed to react to short circuits or sharp spikes in voltage and current. The more current that passes through the breaker’s electromagnet, the stronger the magnet becomes. When the current exceeds the rating for that particular breaker, the magnetic force becomes strong enough that it will pull the contact back and disconnect it from the other contact, disconnecting power from the device.

Thermal Protection Breakers

Thermal Protection Breakers protect against a sustained overcurrent, or a higher current, for a longer period of time. Thermal protection uses a Bimetal strip that will bend the contacts away from each other to disconnect power. Thermal Magnetic Breakers are the most common type of circuit breakers. They combine magnetic technology to protect against short circuits or sharp spikes and thermal technology that protects against sustained overcurrent for a long period of time.
