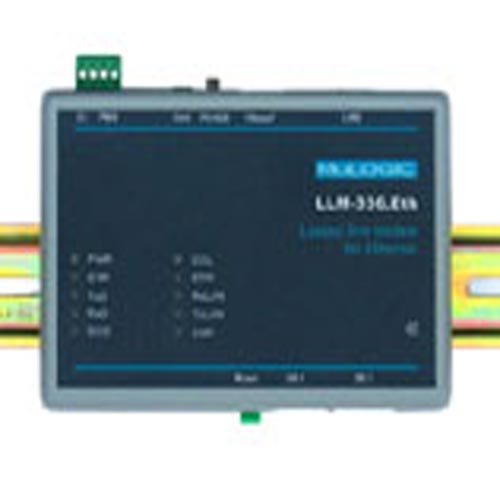

Mulogic LLM-336DEthVR1 Ethernet Leased Line Modem (Din Rail Mount)

Mulogic LLM336.Eth DIN Rail Mount Voiceband Ethernet Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). This Ethernet Modem is for Conditioned Leased Lines(Analog) or Copper Lines used to bridge Ethernet data (Layer 2) over a communications line(2 wire or 4 wire operation). Can also be used on unconditioned copper or other metallic wires and even over voice channels of radio systems. The distance between two voiceband modems is virtually without limits as long as the attenuation and noise on the voice channel remains acceptable. Ethernet port supports 10/100baseT,Auto-MDI/MDIX. Supports SCADA protocols like Modbus/TCP,DNP3/IP and IEC60870-5-104. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. Operating temperature of -13 F to 158 F. No configuration,very easy set-up,plug and play.

Specifications
(Modem/Router) Case Type	Plastic
(Modem/Router) Data Type	Ethernet
(Modem/Router) Ethernet Ports	1 Ethernet Port
(Modem/Router) USB Ports	No USB 2.0 Ports
(Modem/Router) Communication Medium	Leased Lines
(Modem/Router) Communication Medium	Dry Copper Lines
(Modem/Router) Mounting	Din Rail
(Modem/Router) Data Rate Serial	33.6 Kbps
(Modem/Router) RJ11 Ports	1 RJ11 Port
(Modem/Router) Low Temperature Range	-13 F
(Modem/Router) High Temperature Range	158 F
Component	Leased Line Modem
(Modem/Router) Voltage Rating	12 Volt
Manufacturer	Mulogic
(Modem/Router) Voltage Rating	24 Volt
