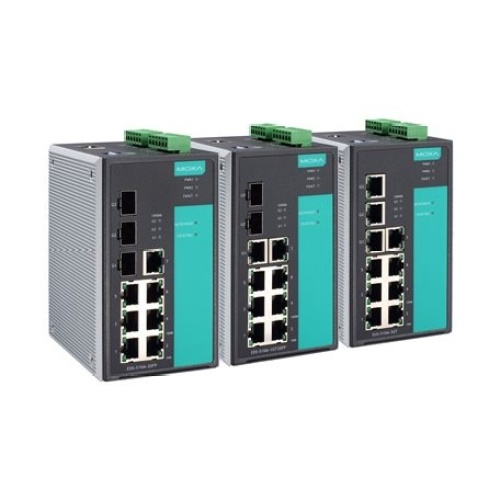

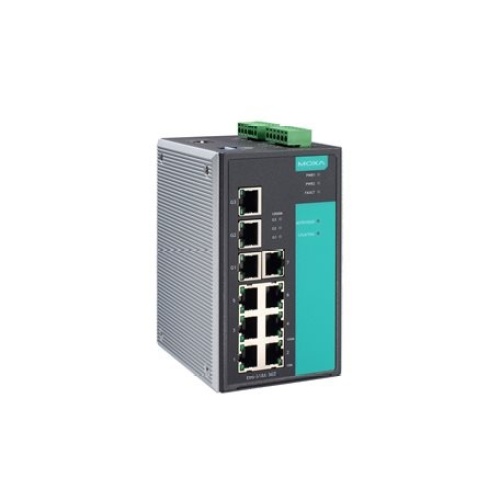

Moxa EDS-510A-3SFP-T Managed Switch
Normally In Stock
Code: 9017
Moxa EDS-510A-3SFP-T Managed Gigabit Ethernet Switch (Din Rail Mount) with 10 ports including 7 Fast Copper ports RJ45 (100 Mbps)s, and 3 ComboPlug-In Gigabit Fiber(1000 Mbps) ports or 3 Gigabit Copper RJ45 ports, Extended Temperature -40 to 75 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$3081.48
Sale Price
$2567.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Moxa EDS-510A-3SFP-T Managed Gigabit Ethernet Switch with 7 Fast Copper ports RJ45 (100 Mbps)s, and 3 ComboPlug-In Gigabit Fiber(1000 Mbps) ports or 2 Gigabit Copper RJ45 ports, -40 to 75 C operating temperature. The EDS-510A Gigabit managed redundant Ethernet Switch is equipped with up to 3 Gigabit Ethernet ports, making it ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The EDS-510A series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Gigabit Copper Ports
At Least 1 Gigabit Copper Combo Port
Min. # Gigabit Copper Ports
At Least 2 Gigabit Copper Combo Port
Min. # Gigabit Copper Ports
At Least 3 Gigabit Copper Combo Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Temperature Range
-40F To 167F
Switch Voltage Input
12 VDC
Switch Ruggedized
Extended Temperature
Switch Management
Managed
Switch Fiber Ports Plug-In Gigabit (1000 Mbps)
3 Plug-In Gigabit Fiber
Switch Copper Ports Gigabit (1000) Mbps
2 RJ45 Ports (Combo)
Min. # Gigabit Fiber SC Ports
At Least 1 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At Least 2 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At Least 3 Gigabit Fiber Plug-In Port
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Copper Ports Fast (100 Mbps)
7 RJ45 Ports
Switch Total Ports
10
Switch Model
Moxa EDS
Switch All Ports
3 Gigabit Copper RJ45-7 Fast Copper RJ45
Switch All Ports
1 Gigabit Copper RJ45-7 Fast Copper RJ45-3 Gigabit Plug-In Fiber
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet port for uplink solution
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
