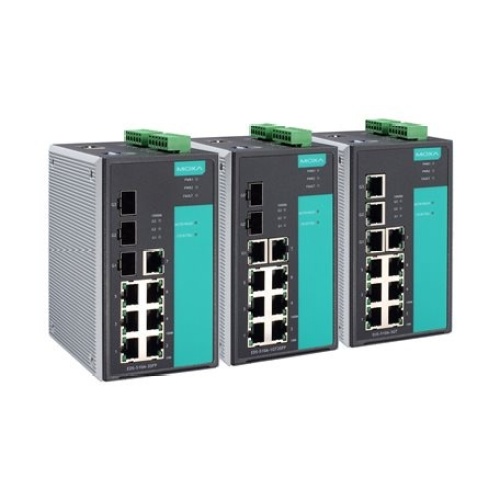

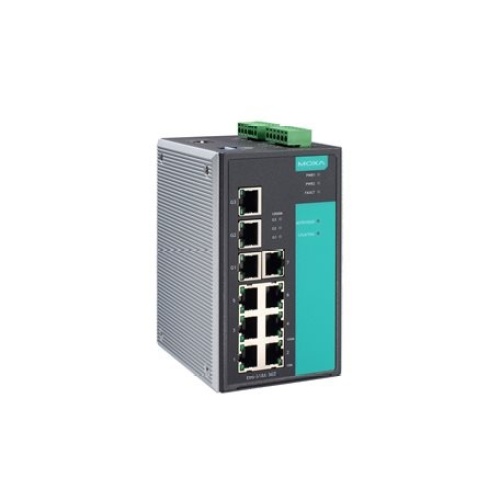

Moxa EDS-510A-1GT2SFP Managed Switch
Normally In Stock
Code: 9009
Moxa EDS-510A-1GT2SFP Managed Gigabit Ethernet Switch (Din Rail Mount) with 10 ports including 7 Fast Copper ports RJ45 (100 Mbps)s, and 1 Gigabit Copper ports RJ45 (1000 Mbps)s and 2 Combo Plug-In Gigabit Fiber(1000 mbps) ports or 2 Gigabit Copper RJ45 ports, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$2903.88
Sale Price
$2419.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Moxa EDS-510A-1GT2SFP Managed Gigabit Ethernet Switch with 7 Fast Copper ports RJ45 (100 Mbps)s, and 1 Gigabit Copper ports RJ45 (1000 Mbps)s and 2 Combo Plug-In Gigabit Fiber (1000 mbps) ports or 2 Gigabit Copper RJ45 ports, 0 to 60 C operating temperature. The EDS-510A Gigabit managed redundant Ethernet Switch is equipped with up to 3 Gigabit Ethernet ports, making it ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The EDS-510A series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Gigabit Copper Ports
At Least 1 Gigabit Copper RJ45 Port
Min. # Gigabit Copper Ports
At Least 1 Gigabit Copper Combo Port
Min. # Gigabit Copper Ports
At Least 2 Gigabit Copper Combo Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Voltage Input
12 VDC
Switch Management
Managed
Switch Fiber Ports Plug-In Gigabit (1000 Mbps)
2 Plug-In Gigabit Fiber
Switch Copper Ports Gigabit (1000) Mbps
1 RJ45 Ports
Switch Temperature Range
32F To 140F
Min. # Gigabit Fiber SC Ports
At Least 1 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At Least 2 Gigabit Fiber Plug-In Port
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Copper Ports Fast (100 Mbps)
7 RJ45 Ports
Switch Total Ports
10
Switch Model
Moxa EDS
Switch Copper Ports Plug-In Gigabit (1000) Mbps
2 RJ45 Ports (Combo)
Switch All Ports
3 Gigabit Copper RJ45-7 Fast Copper RJ45
Switch All Ports
1 Gigabit Copper RJ45-7 Fast Copper RJ45-2 Gigabit Plug-In Fiber
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet port for uplink solution
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
