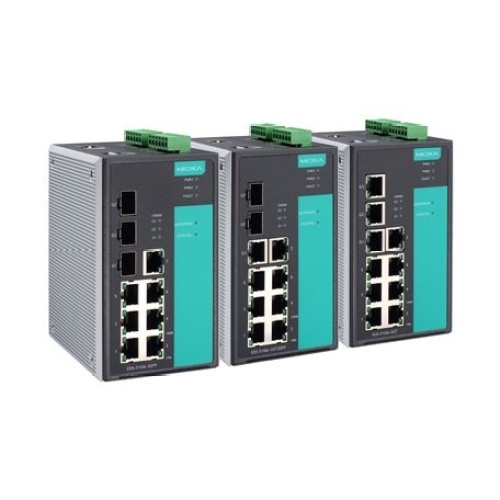

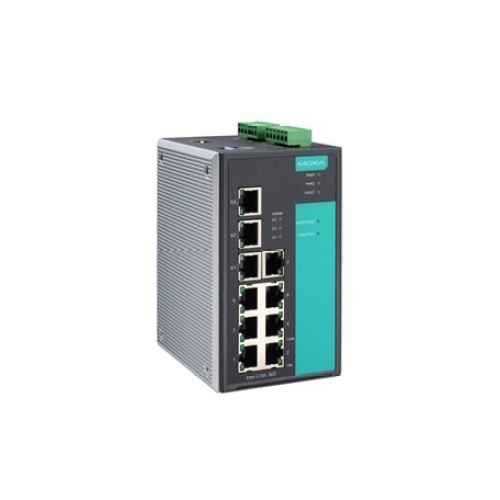

Moxa EDS-510A-3SFP Managed Switch
Normally In Stock
Code: 9010
Moxa EDS-510A-3SFP Managed Gigabit Ethernet Switch (Din Rail Mount) with 10 ports including 7 Fast Copper ports RJ45 (100 Mbps)s, and 3 Combo Plug-In Gigabit Fiber(1000 Mbps) ports or 3 Gigabit Copper RJ45 ports, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$2903.88
Sale Price
$2419.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Moxa EDS-510A-3SFP Managed Gigabit Ethernet Switch with 7 Fast Copper ports RJ45 (100 Mbps)s, and 3 ComboPlug-In Gigabit Fiber(1000 Mbps) ports or 2 Gigabit Copper RJ45 ports, 0 to 60 C operating temperature. The EDS-510A Gigabit managed redundant Ethernet Switch is equipped with up to 3 Gigabit Ethernet ports, making it ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The EDS-510A series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Gigabit Copper Ports
At Least 1 Gigabit Copper Combo Port
Min. # Gigabit Copper Ports
At Least 2 Gigabit Copper Combo Port
Min. # Gigabit Copper Ports
At Least 3 Gigabit Copper Combo Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Voltage Input
12 VDC
Switch Management
Managed
Switch Temperature Range
32F To 140F
Switch Fiber Ports Plug-In Gigabit (1000 Mbps)
3 Plug-In Gigabit Fiber
Switch Copper Ports Gigabit (1000) Mbps
2 RJ45 Ports (Combo)
Min. # Gigabit Fiber SC Ports
At Least 1 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At Least 2 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At Least 3 Gigabit Fiber Plug-In Port
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Copper Ports Fast (100 Mbps)
7 RJ45 Ports
Switch Total Ports
10
Switch Model
Moxa EDS
Switch All Ports
3 Gigabit Copper RJ45-7 Fast Copper RJ45
Switch All Ports
1 Gigabit Copper RJ45-7 Fast Copper RJ45-3 Gigabit Plug-In Fiber
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet port for uplink solution
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
