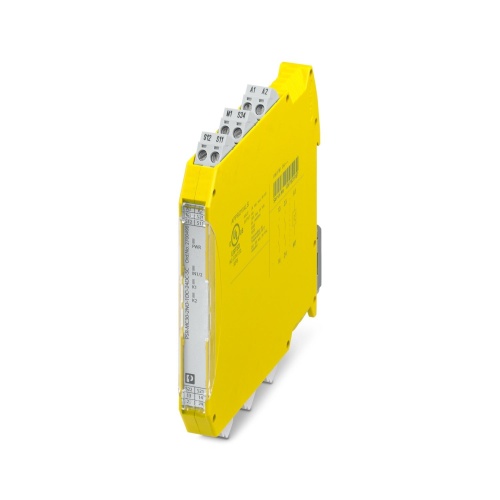

Phoenix Contact 2700498 Safety relays PSR-MC30-2NO-1DO-24DC-SC
Normally In Stock
Code: 72926
PSR-MC30-2NO-1DO-24DC-SC Phoenix 2700498 Safety relays
Condition: New
Usually ships Same Day or Next Day$225.80
Sale Price
$188.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700498 A safety relay suitable for emergency stop and safety doors is available with SIL 3, Cat. 4, PL e ratings, and can operate on either one or two channels, whether automatically or manually initiated, with monitored start functionality and cross-circuit detection. Additionally, it has dual enabling current paths and uses a plug-in screw terminal block that accepts 24V DC power from the US input.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
2 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Manually monitored and automatic activation in a single device
Cross-circuit detection
Low housing width of just 12.5 mm
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
2 enabling current paths, 1 digital signal output
2 channel control
