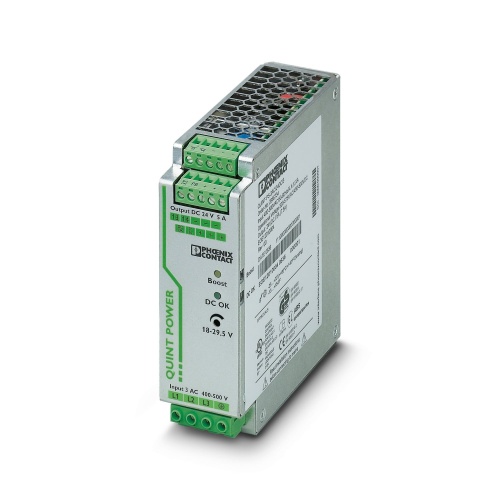

Phoenix Contact 2866734 Power supply QUINT-PS/3AC/24DC/ 5
Normally In Stock
Code: 653
Phoenix Contact QUINT-PS/3AC/24DC/5. 24 VDC output 5 Amp Premium Power Supply(Class 1 Div 2) with 3-Phase input voltage 320-575 Vac or 450-800 Vdc . Din rail mount Screw Connection. Temperature range of -13 F to 158 F.
Condition: New
Usually ships Same Day or Next Day$492.35
Sale Price
$410.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2866734 The QUINT POWER is a primary-switched power supply unit featuring a pluggable screw connection and incorporating the SFB Technology for selective fuse breaking. It accepts a 3-phase input and provides a stable 24V DC output of up to 5 amps.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
120 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
320 VAC - 575 VAC
Power Supply Voltage Input Range
450 - 800 VDC
Features
High level of system availability even in the event of permanent phase failure
Preventive function monitoring
Reliable starting of difficult loads
