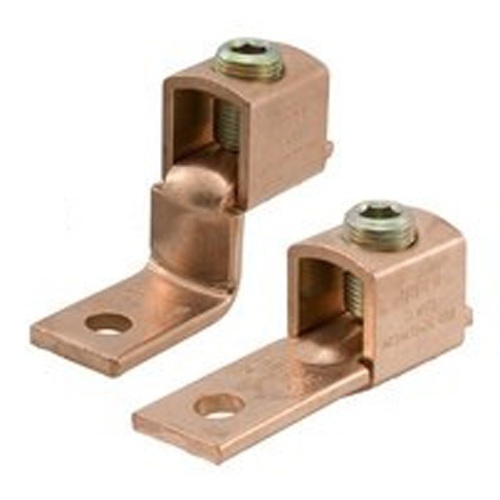

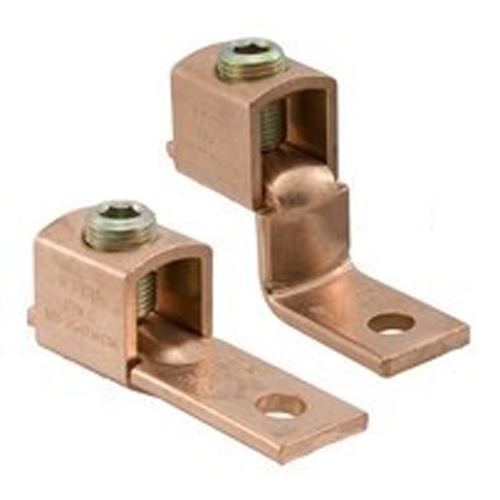

Ilsco SLU-125 Mechanical Lug - Copper, 1/0-6 AWG, Stranded, 35 kV, 1/4"
Normally In Stock
Code: 589416
Ilsco SLU-125 - Copper Mechanical Lug Offset, Conductor Range 1/0-6, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
Condition: New
CALL FOR LEAD TIME$15.04
Sale Price
$11.57
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SLU-125 - Copper Mechanical Lug Offset for 1/0-6 conductor range. 1 port, 1 hole, 1/4in bolt size. UL, CSA, NEMA certified. 35kV voltage rating, 90°C temperature rating. Mechanical connection, steel hardware with zinc finish. V-bottom collar design with Tang Offset of 0.584in. Suitable for various applications. UL Control Number: 453G.
Specifications
Terminal Stud Size Opening
1/4"
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Color
Copper
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
1/0-6 AWG
Features
Manufactured from electrolytic copper tubing and strip stock
Compact design
Range taking
Re-usable
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
V-bottom collar
SLU-35DB and SLU-70DB are UL 467 Listed and suitable for direct burial
Rated to 90˚ C
