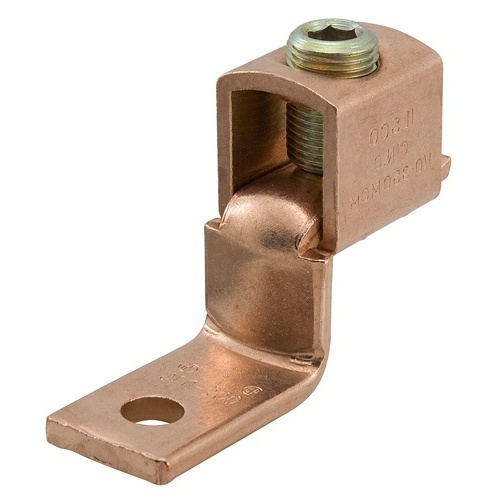

Ilsco SLU-300 Mechanical Lug - Copper, 350-1/0 AWG, Stranded, 35 kV, 3/8", Copper
Normally In Stock
Code: 588761
Ilsco SLU-300 - Copper Mechanical Lug Offset, Conductor Range 350-1/0, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
Condition: New
CALL FOR LEAD TIME$40.60
Sale Price
$31.23
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SLU-300 - Copper Mechanical Lug Offset with 1 port and 1 hole for 350-1/0 conductor range. UL and CSA listed, rated for 35 kV and 90°C. Includes 3/8in bolt, steel wire binding hardware, and V-bottom collar design. Mounting hole diameter of 0.406in and tang offset of 1.188in. Ideal for mechanical connections. ROHS compliant.
Specifications
Terminal Stud Size Opening
3/8"
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Color
Copper
Terminal for Wire Gauge
350-1/0 AWG
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Features
Manufactured from electrolytic copper tubing and strip stock
Compact design
Range taking
Re-usable
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
V-bottom collar
SLU-35DB and SLU-70DB are UL 467 Listed and suitable for direct burial
Rated to 90˚ C
