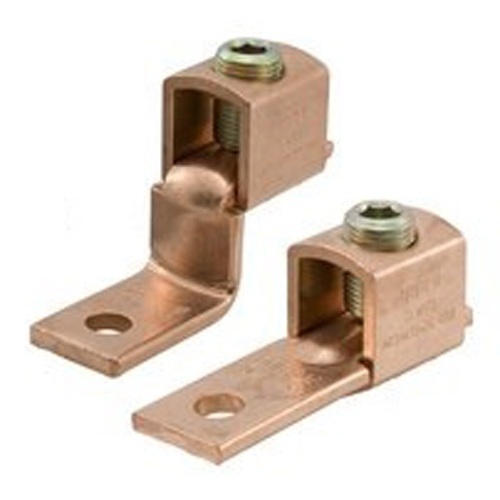

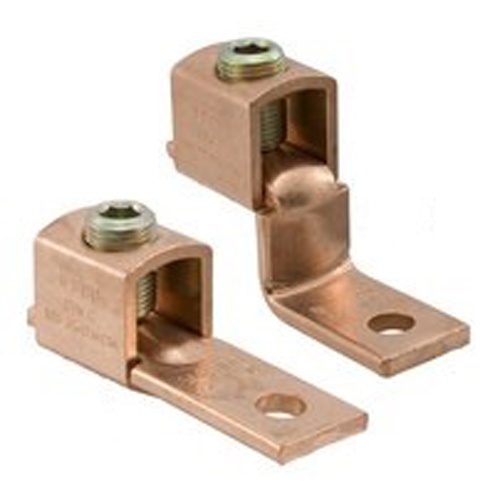

Ilsco SLU-225 Mechanical Lug - Copper, 4/0-2 AWG, Stranded, 35 kV, 5/16", Copper
Normally In Stock
Code: 588864
Ilsco SLU-225 - Copper Mechanical Lug Offset, Conductor Range 4/0-2, 1 Port, 1 Hole, 5/16in Bolt Size, UL, CSA
Condition: New
CALL FOR LEAD TIME$23.86
Sale Price
$18.35
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SLU-225 - The Copper Mechanical Lug Offset is a UL and CSA listed connector with a 4/0-2 conductor range, 1 port, and 1 hole. It has a 5/16in bolt size, 35 kV voltage rating, and temperature rating of 90°C. Suitable for stranded copper conductors, it features steel wire binding hardware and a zinc clear trivalent chromate finish.
Specifications
Terminal Stud Size Opening
5/16"
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Color
Copper
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
4/0-2 AWG
Features
Manufactured from electrolytic copper tubing and strip stock
Compact design
Range taking
Re-usable
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
V-bottom collar
SLU-35DB and SLU-70DB are UL 467 Listed and suitable for direct burial
Rated to 90˚ C
