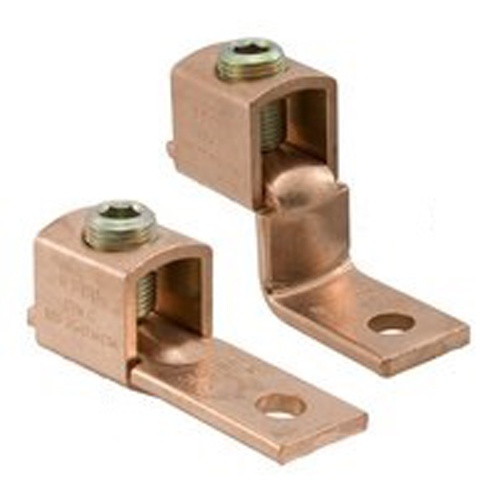

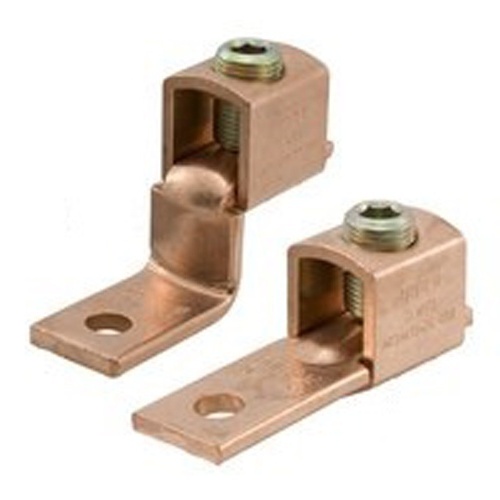

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Ilsco SLU-25 Mechanical Lug - Copper, 10-14 AWG, Stranded, 35 kV, #6, Copper
Normally In Stock
Code: 588668
Ilsco SLU-25 - Copper Mechanical Lug Offset, Conductor Range 10-14, 1 Port, 1 Hole, #6 Bolt Size, UL, CSA
Condition: New
CALL FOR LEAD TIME$3.34
Sale Price
$2.57
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SLU-25 - Copper Mechanical Lug Offset for 10-14 AWG conductors, with 1 port, 1 hole, #6 bolt size. UL and CSA listed for 35 kV, with temperature rating of 90°C. Features copper construction, slotted drive type, and zinc clear trivalent chromate finish. Mounting hole diameter of 3.9624mm and tang thickness of 1.8288mm.
Specifications
Terminal Stud Size Opening
#6
Manufacturer
Ilsco
Material
Copper
Terminal for Wire Gauge
10-14 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Color
Copper
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Features
Manufactured from electrolytic copper tubing and strip stock
Compact design
Range taking
Re-usable
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
V-bottom collar
SLU-35DB and SLU-70DB are UL 467 Listed and suitable for direct burial
Rated to 90˚ C
