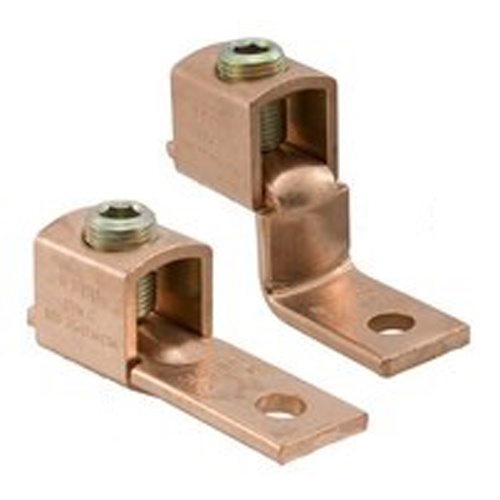

Ilsco SLU-35 Mechanical Lug - Copper, 6-14 AWG, Solid, 35 kV, #10, Copper
Normally In Stock
Code: 588669
Ilsco SLU-35 - Copper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA
Condition: New
CALL FOR LEAD TIME$3.74
Sale Price
$2.88
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SLU-35 - This Copper Mechanical Lug Offset is suitable for 6-14 AWG copper conductors, with one port and hole for #10in bolt size. UL and CSA listed, with a NEMA code S-588-3. Rated for 35 kV, with a temperature rating of 90°C. Steel wire binding hardware with clear zinc finish. Ideal for solid copper conductors.
Specifications
Terminal Stud Size Opening
#10
Manufacturer
Ilsco
Material
Copper
Terminal for Wire Gauge
6-14 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Color
Copper
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Features
Manufactured from electrolytic copper tubing and strip stock
Compact design
Range taking
Re-usable
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
V-bottom collar
SLU-35DB and SLU-70DB are UL 467 Listed and suitable for direct burial
Rated to 90˚ C
