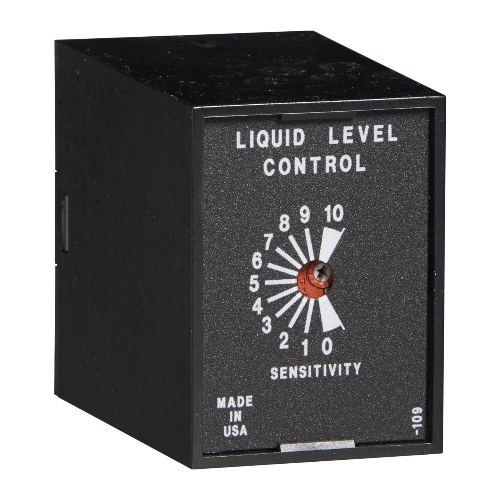

Littelfuse LLC44A5A Liquid Level Control - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565348

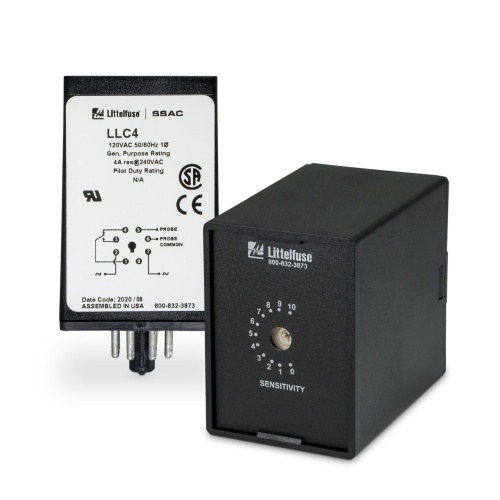

Littelfuse LLC44A5A - LLC4 Series – Liquid Level Controller Series - 120 Volt - Plug-in socket - 4 A resistive @ 240 VAC and 28 VDC; 1/10 hp @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$138.72
Sale Price
$115.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC44A5A is a 4A resistive output load rating power relay with a termination type of Octal 8-pin plug-in. It supports both 240V and 28V (DC) output loads and 1/10 hp @ 240V. The input AC line frequency is 50/60Hz, with a tolerance of -0.3%. It provides surge protection according to the IEEE C62.41-1991 Level A standard. The sense resistance is adjustable up to 250Ω, and sense voltage is 12V at probe terminals. It features an ON/OFF control type with a built-in time delay to prevent rapid cycling. The sense resistance tolerance is 1 kΩ ±500 at the low end and 250 kΩ ±25% at the high end.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Relay Timing Range
5 S
Features
Isolated 12 V ac voltage on probes
Industry standard 8-pin octal plug connection
Sensitivity adjustment
