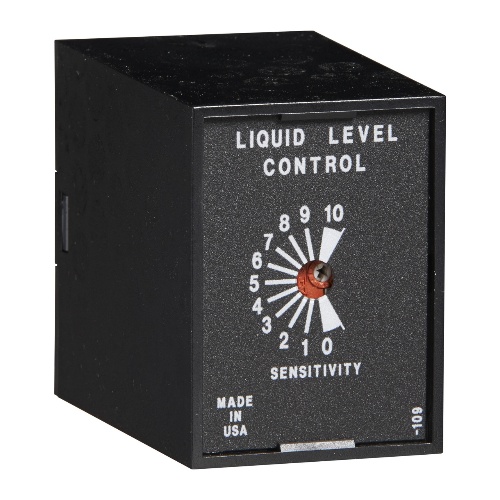

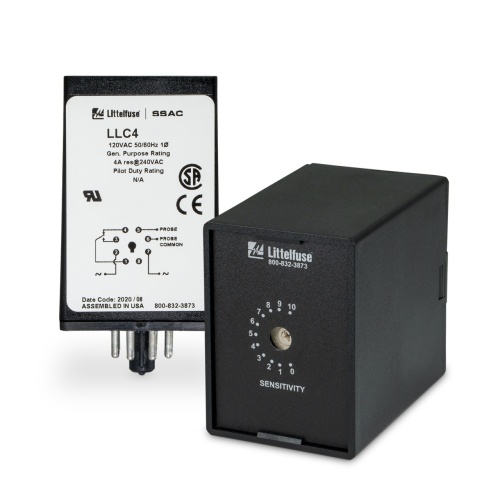

Littelfuse LLC44A1A Liquid Level Control - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565345
Littelfuse LLC44A1A - LLC4 Series – Liquid Level Controller Series - 120 Volt - Plug-in socket - 4 A resistive @ 240 VAC and 28 VDC; 1/10 hp @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$143.15
Sale Price
$119.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC44A1A is a plug-in device with an octal 8-pin termination type. It has a 4A resistive load rating at both 240VAC and 28VDC, as well as a 1/10hp rating at 240VAC. It operates at a frequency of 50/60Hz and offers surge protection compliant with IEEE C62.41-1991 Level A. The input tolerance is -0.3%, and the sense resistance is adjustable to 250 ohms. The sense voltage is 12V, and it utilizes an ON/OFF control type with a built-in time delay to prevent rapid cycling. The sense resistance tolerance is 1 kΩ ±500 on the low end and 250 kΩ ±25% on the high end.
Specifications
Relay Throws
Double Throw
Relay Timing Range
1 S
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Features
Isolated 12 V ac voltage on probes
Industry standard 8-pin octal plug connection
Sensitivity adjustment
