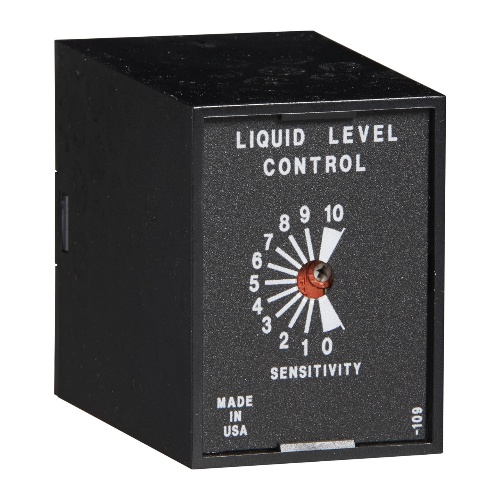

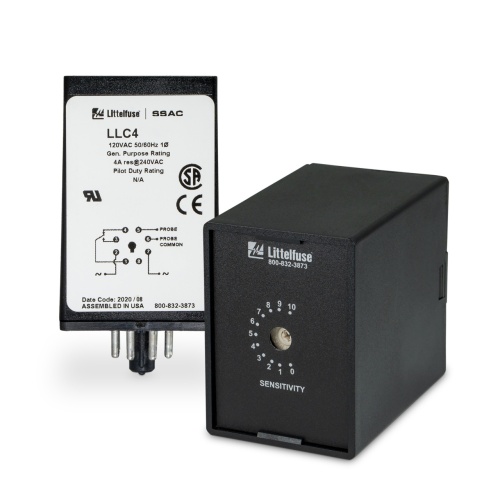

Littelfuse LLC44A2A Liquid Level Control - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565346
Littelfuse LLC44A2A - LLC4 Series – Liquid Level Controller Series - 120 Volt - Plug-in socket - 4 A resistive @ 240 VAC and 28 VDC; 1/10 hp @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$136.32
Sale Price
$113.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC44A2A is an octal 8-pin plug-in relay with a 4A resistive load rating at 240VAC and 28VDC, as well as 1/10 hp at 240VAC. It has surge protection and meets IEEE C62.41-1991 Level A. The control type is ON/OFF resistance sensor with built-in time delay. Sense resistance is adjustable to 250 ohms, and sense voltage is 12V. Input tolerance is -0.3%, and it operates at 50/60Hz.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Relay Timing Range
2 S
Features
Isolated 12 V ac voltage on probes
Industry standard 8-pin octal plug connection
Sensitivity adjustment
