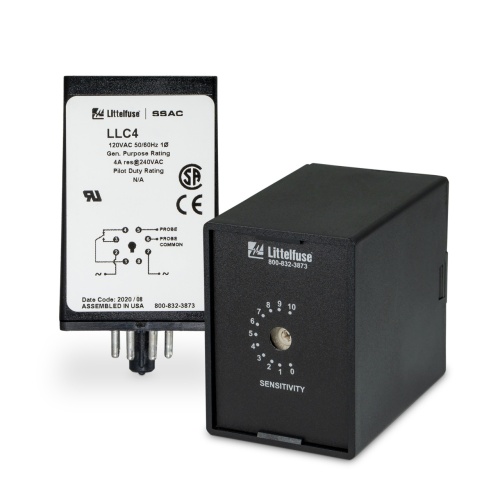

Littelfuse LLC44A10A Liquid Level Control - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565344
Littelfuse LLC44A10A - LLC4 Series – Liquid Level Controller Series - 120 Volt - Plug-in socket - 4 A resistive @ 240 VAC and 28 VDC; 1/10 hp @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$143.15
Sale Price
$119.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC44A10A is an Octal 8-pin plug-in relay with a 4 A resistive output load rating at 240 Volts and 28 Volts DC. It has an input AC line frequency of 50/60 Hz with a tolerance of -0.3%. The surge protection meets IEEE C62.41-1991 Level A standards. The control type is an ON/OFF resistance sensor with a built-in time delay to prevent rapid cycling. The sense resistance is adjustable to 250 Ohms, and the sense voltage is 12 Volts at the probe terminals. The sense resistance tolerance is 1 kΩ ± 500 at the low end and 250 kΩ ± 25% at the high end.
Specifications
Relay Throws
Double Throw
Relay Timing Range
10 S
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Features
Isolated 12 V ac voltage on probes
Industry standard 8-pin octal plug connection
Sensitivity adjustment
