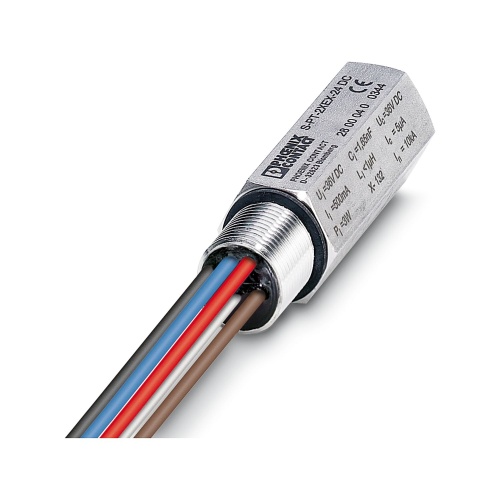

Phoenix Contact 2800040 Surge protection device S-PT-2XEX-24DC
Normally In Stock
Code: 10628

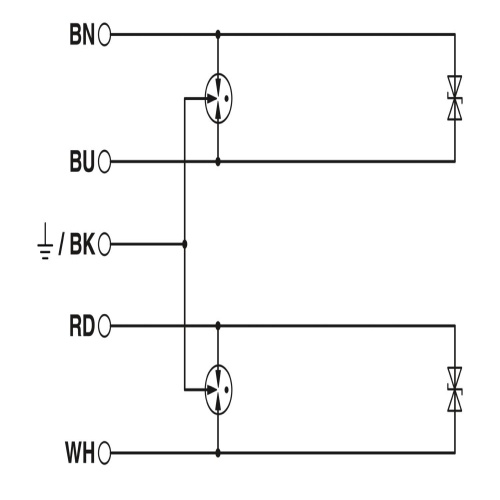

S-PT-2XEX-24DC Phoenix Contact Transient Surge Suppressor S-PT-2XEX-24DC Surge protection for two floating signal circuits in screw-on module with IP67 degree of protection for sensor heads.
Condition: New
Usually ships Same Day or Next Day$299.15
Sale Price
$249.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

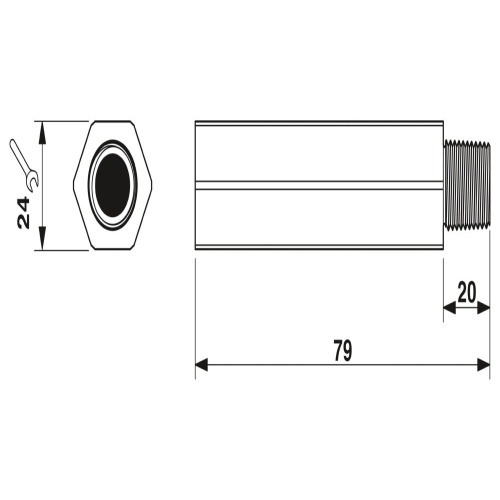

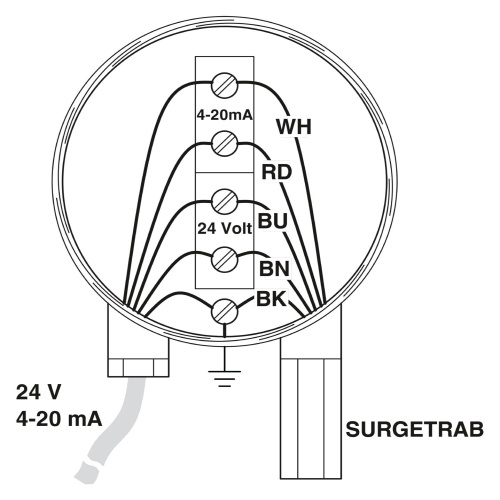

Phoenix Contact 2800040 The screw-on module features surge protection for two floating signal circuits, rated IP67 and suitable for sensor heads, while connections are made via M20 x 1.5 threads. The device has been tested in Ex areas in compliance with various protection types including Ex d, Ex tD, Ex ia IIC, and Ex ia D. It is designed to be used within the FISCO fieldbus system concept and can be utilized for safety-related circuits up to SIL level 3.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Max Discharge Capacity
100 A (260 V)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Maximum Continous Voltage
260 Volt
Surge Protector Type
Replacement Plug
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Easiest field mounting with standardized thread
Versatile in use with universal protective circuit
Use under extreme ambient conditions with robust design
Downloads
Phoenix 2800040 CAD Drawing.zipPhoenix 2800040 Certification English.pdfPhoenix 2800040 Certification International.pdfPhoenix 2800040 Flyer English.pdfPhoenix 2800040 Manufacturers declaration International.pdfPhoenix 2800040 Package Slip International.pdfPhoenix 2800040 Software International.zipPhoenix 2800040 Spec Sheet.pdfPhoenix 2800040 Surge Protection English.pdfPhoenix 2800040 Table English.pdfPhoenix 2800040 Tender Text English.zipPhoenix 2800040 User Manual.pdf
