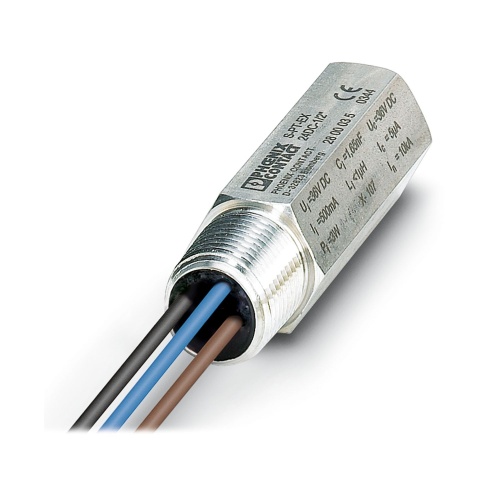

Phoenix Contact 2800035 Surge protection device S-PT-EX-24DC-1/2"
Normally In Stock
Code: 10625
S-PT-EX-24DC-1/2" Phoenix Contact Transient Surge Suppressor S-PT-EX-24DC-1/2" Surge protection for one floating signal circuit in screw-on module with IP67 degree of protection for sensor heads.
Condition: New
Usually ships Same Day or Next Day$172.87
Sale Price
$144.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

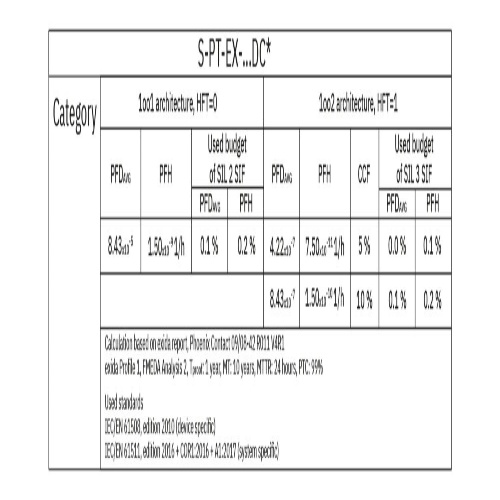

Phoenix Contact 2800035 The screw-on module offers surge protection for floating signal circuits and features IP67 degree of protection for sensor heads connected via a ½-inch 14 NPT port. It has been tested to meet Ex area standards, including Ex d/Ex tD/Ex ia IIC/Ex iaD, making it suitable for use in fieldbus systems conforming to the FISCO concept and compatible with HART technology. Additionally, this module can be used in safety-related circuits up to SIL 3 level of safety integrity.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
275 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Easiest field mounting with standardized thread
Versatile in use with universal protective circuit
Use under extreme ambient conditions with robust design
Downloads
Phoenix 2800035 CAD Drawing.zipPhoenix 2800035 Certification English.pdfPhoenix 2800035 Certification International.pdfPhoenix 2800035 Flyer English.pdfPhoenix 2800035 Manufacturers declaration International.pdfPhoenix 2800035 Package Slip International.pdfPhoenix 2800035 Software International.zipPhoenix 2800035 Spec Sheet.pdfPhoenix 2800035 Surge Protection English.pdfPhoenix 2800035 Table English.pdfPhoenix 2800035 Tender Text English.zipPhoenix 2800035 User Manual.pdf
