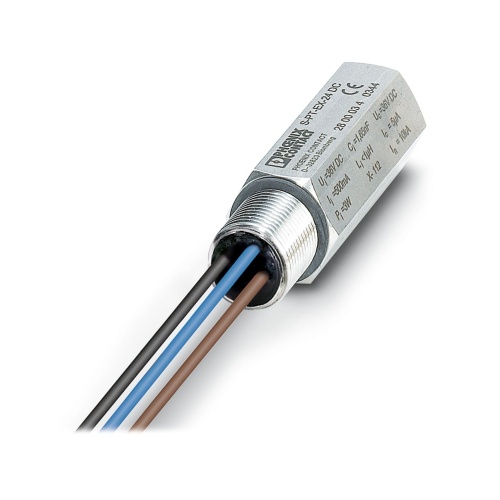

Phoenix Contact 2800034 Surge protection device S-PT-EX-24DC
Normally In Stock
Code: 10624

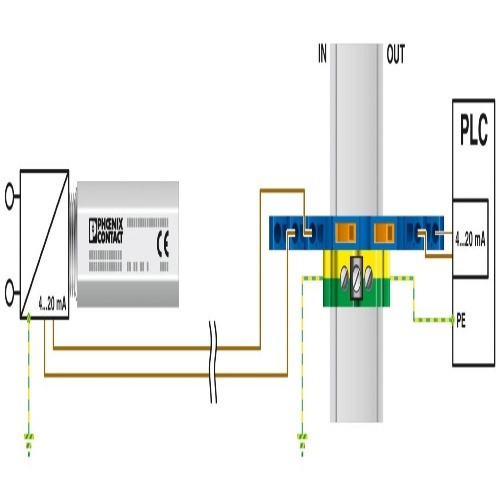

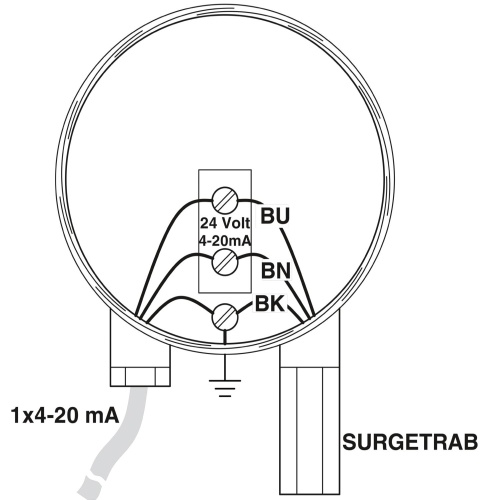

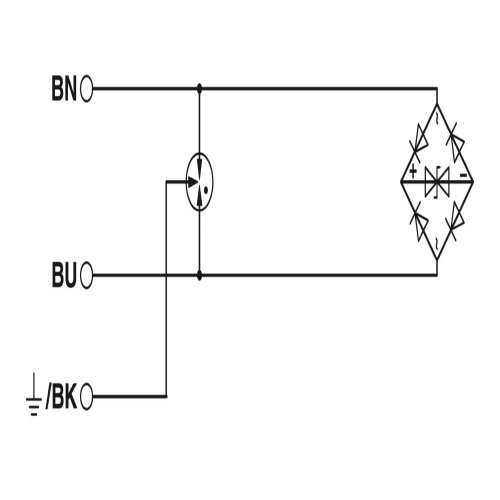

S-PT-EX-24DC Phoenix Contact Transient Surge Suppressor S-PT-EX-24DC Surge protection for one floating signal circuit in screw-on module with IP67 degree of protection for sensor heads.
Condition: New
Usually ships within 7-14 days. Call for ship time.$172.87
Sale Price
$144.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

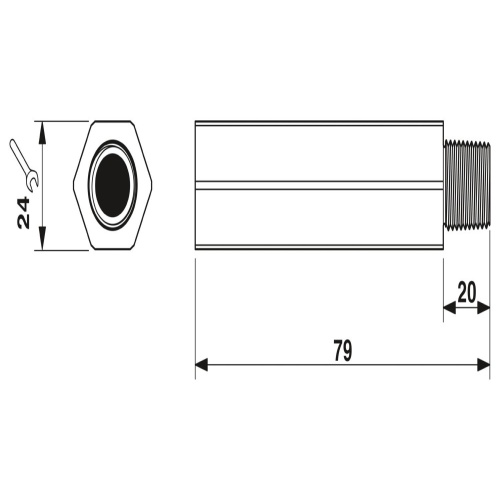

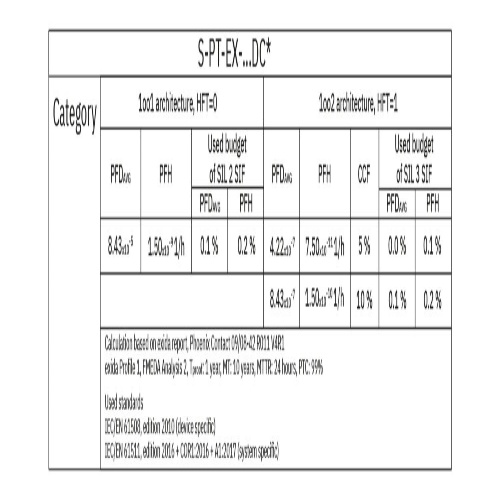

Phoenix Contact 2800034 The screw-on module features surge protection for floating signal circuits and is rated IP67, providing protection against immersion in water. It connects via M20 x 1.5 threads and has been tested in Ex areas with various levels of protection, including Ex d/Ex tD/Ex ia IIC/Ex iaD ratings. Suitable for use in fieldbus systems and HART-compatible, it can also be used in safety-related circuits up to SIL 3.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Maximum Continous Voltage
260 Volt
Surge Protector Type
Surge Arrester
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Easiest field mounting with standardized thread
Versatile in use with universal protective circuit
Use under extreme ambient conditions with robust design
Downloads
Phoenix 2800034 CAD Drawing.zipPhoenix 2800034 Certification English.pdfPhoenix 2800034 Certification International.pdfPhoenix 2800034 Flyer English.pdfPhoenix 2800034 Manufacturers declaration International.pdfPhoenix 2800034 Package Slip International.pdfPhoenix 2800034 Software International.zipPhoenix 2800034 Spec Sheet.pdfPhoenix 2800034 Surge Protection English.pdfPhoenix 2800034 Table English.pdfPhoenix 2800034 Tender Text English.zipPhoenix 2800034 User Manual.pdf
