Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

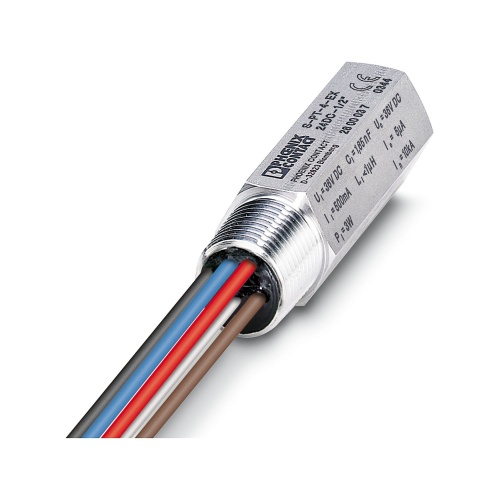

Phoenix Contact 2800037 Surge protection device S-PT-4-EX-24DC-1/2"
Normally In Stock
Code: 10533
S-PT-4-EX-24DC-1/2" Phoenix Contact Transient Surge Suppressor S-PT-4-EX-24DC-1/2" Two-level surge protection for three or four signals of floating signal circuits in screw-on module with IP67 degree of protection.
Condition: New
Usually ships Same Day or Next Day$299.15
Sale Price
$249.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2800037 The screw-on module features two-stage surge protection for floating signal circuits, rated for three or four signals and offering IP67 degree of protection for sensor heads, along with ½-inch 14 NPT connections. It has been tested for compliance with Ex areas, including d/Ex tD/Ex ia IIC/Ex iaD standards. This module is suitable for use in fieldbus systems, as well as safety-related circuits that meet SIL 3 requirements, and is also HART-compatible according to the FISCO concept.
Specifications
Max Discharge Capacity
350 V AC
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
24 Volt
Component
Surge Protection Device
Features
Easiest field mounting with standardized thread
Versatile in use with universal protective circuit
Use under extreme ambient conditions with robust design
Downloads
Phoenix 2800037 CAD Drawing.zipPhoenix 2800037 Certification English.pdfPhoenix 2800037 Certification International.pdfPhoenix 2800037 Flyer English.pdfPhoenix 2800037 Manufacturers declaration International.pdfPhoenix 2800037 Package Slip International.pdfPhoenix 2800037 Software International.zipPhoenix 2800037 Spec Sheet.pdfPhoenix 2800037 Surge Protection English.pdfPhoenix 2800037 Table English.pdfPhoenix 2800037 Tender Text English.zipPhoenix 2800037 User Manual.pdf
