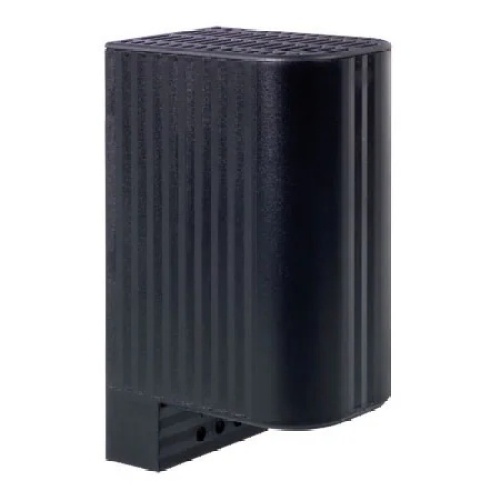

Omega CS0601 ENCLOSURE HTR.100WAC/DC120-240
Normally In Stock
Code: 781039
Omega CS0601 ENCLOSURE HTR.100WAC/DC120-240
Condition: New
Usually ships Same Day or Next Day$254.77
Sale Price
$212.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Enclosure Heater, Touch-Safe, 120 Vac/Vdc to 240 Vac/Vdc, 100 W, DIN Clip for 35 mm (1.4 ") DIN Rail, -45 °C to 70 °C (-49 °F to 158 °F), 4.5 A Maximum Inrush Current, CS060 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Duct And Enclosure Heater
Heater Voltage
120 To 240 Vac/Vdc
Heater Watt
100 Watt
Features
Low Surface Temperature
Quick Mounting Due to DIN Rail Mountable
Double Insulated (Plastic)
Wide Voltage Range
Electrical ConnectionScrew Terminal
Enclosure RatingsIP20, NEMA Type 2
Fitting positionVertical
Form factorDIN Clip for 35 mm
Heating Element MaterialPTC resistor
Housing MaterialPlastic
Operating Temperature, Min-20 °C
ProtectionII (Double insulated)
Storage Temperature, Max70 °C
Storage Temperature, Min-45 °C
Supply Voltage120 to 240 Vac/Vdc
Surface Temperature Note<80°C (176°F), except upper protective grille
Width60 mm
Wire Gauge16 AWG
