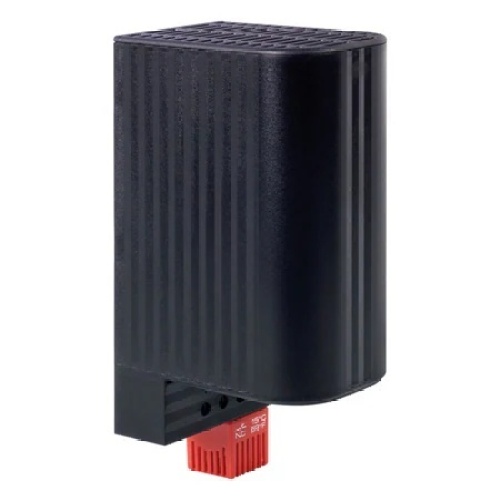

Omega CSF06011 ENCLOSURE HEATER 100 WATT
Normally In Stock
Code: 781042
Omega CSF06011 ENCLOSURE HEATER 100 WATT
Condition: New
Usually ships Same Day or Next Day$220.55
Sale Price
$183.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Enclosure Heater, Touch-Safe, with Thermostat, 120 Vac to 240 Vac, 100 W, DIN Clip for 35 mm (1.4 ") DIN Rail, -40 °C to 70 °C (-40 °F to 158 °F), 4.5 A Maximum Inrush Current, CSF060 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Duct And Enclosure Heater
Heater Voltage
120/240 Vac
Heater Watt
100 Watt
Features
Low Surface Temperature
Integrated Thermostat
Quick Mounting Due to DIN Clip
Double Insulated (Plastic)
Electrical ConnectionScrew Terminal
Enclosure RatingsIP20, NEMA Type 2
Fitting positionVertical
Form factorDIN Clip for 35 mm
Heating Element MaterialPTC resistor
Housing MaterialPlastic
Current, Max2.5 A
Operating Temperature, Min-40 °C
ProtectionII (Double insulated)
Starting Temperature5 °C
Storage Temperature, Max70 °C
Storage Temperature, Min-45 °C
Supply Voltage120/240 Vac
Surface Temperature Note<80°C (176°F), except upper protective grille
Switch-Off Temperature15 °C
Width60 mm
Wire Gauge16 AWG
