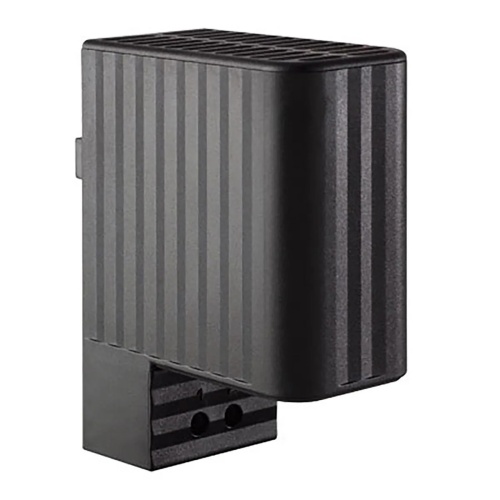

Omega CSK06030 ENCLOSURE HTR.20W AC/DC120-240
Normally In Stock
Code: 781044
Omega CSK06030 ENCLOSURE HTR.20W AC/DC120-240
Condition: New
Usually ships Same Day or Next Day$76.48
Sale Price
$63.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Enclosure Heater with Thermostat, Touch-Safe, 120 Vac/Vdc to 240 Vac/Vdc, 20 W, DIN Rail Mountable, -45 °C to 70 °C (-49 °F to 158 °F), 2.5 A Maximum Inrush Current, CSK060 Series, Each
Specifications
Heater Watts
20 Watts
Manufacturer
Omega Engineering
Component
Duct And Enclosure Heater
Heater Voltage
120-240 Volt
Features
Low Surface Temperature
Double Insulated (Plastic Housing)
Wide Voltage Range
Temperature Limiting
Electrical ConnectionScrew Terminal
Enclosure RatingsIP20, NEMA Type 2
Fitting positionVertical
Form factorDIN Clip for 35 mm
Heating Element MaterialPTC resistor
Height98 mm
Housing MaterialPlastic
Operating Temperature, Max70 °C
Operating Temperature, Min-20 °C
Surface Temperature, Max85 °C
Surface Temperature Note<85ºC (185ºF), (according to VDE 0100), except upper protective grille
Width75 mm
Wire Gauge16 AWG
