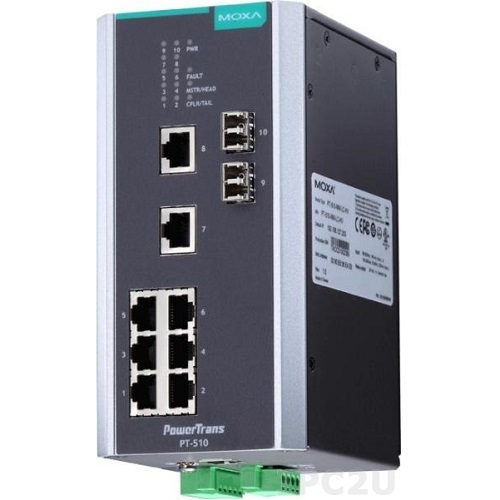

Moxa PT-510-MM-LC-HV Managed Switch
Normally In Stock
Code: 26327
Moxa PT-510-MM-LC-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 10 ports including 8 Fast Copper ports RJ45 (100 Mbps) and 2 Fast Fiber ports LC Multi-Mode (100 Mbps). Operating Temperature: -40 to 185°F. Redundant power inputs 110-220 VDC/VAC VDC Power Supply.
Condition: New
Usually ships Same Day or Next Day$2686.10
Sale Price
$2238.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

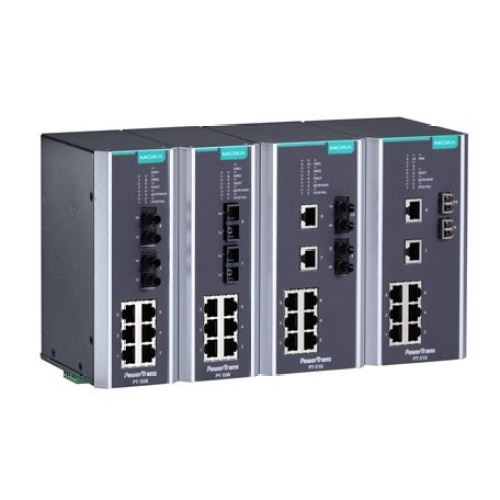

Moxa PT-510-MM-LC-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 10 ports including 8 Fast Copper ports RJ45 (100 Mbps) and 2 Fast Fiber ports LC Multi-Mode (100 Mbps). The PowerTrans PT-508/510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508/510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (110-220 VDC/VAC VDC), and isolated power inputs (110-220 VDC/VAC VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-508/510 makes network planning easy, and allows greater flexibility by letting you install up to 8/10 Fast Ethernet ports for power distribution applications.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Certification
IEC 61850-3 Certified
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 8 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Ruggedized
Extended Temperature
Switch Management
Managed
Switch Temperature Range
-40F To 185F
Switch Voltage Input
110 VDC
Switch Voltage Input
110 VAC
Switch Voltage Input
220 VAC
Switch Voltage Input
220 VDC
Switch Fiber Ports Multi Mode Fast (100 Mbps)
2 LC Multi Mode
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber LC Port Multi
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber LC Port Multi
Switch POE Ports
No POE Ports
Switch Copper Ports Fast (100 Mbps)
8 RJ45 Ports
Switch Total Ports
10
Switch Power Redundancy
Redundant Power Supplies
Switch Model
Moxa EDS PT
Switch All Ports
8 Fast Copper RJ45-2 Fast Fiber LC Multi
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
IEC 61850-3 and IEEE 1613 compliant
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Isolated universal 24 VDC or 48 VDC redundant power inputs
Wide 110/220 VDC/VAC power supply range
Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
-40 to 85°C operating temperature range
