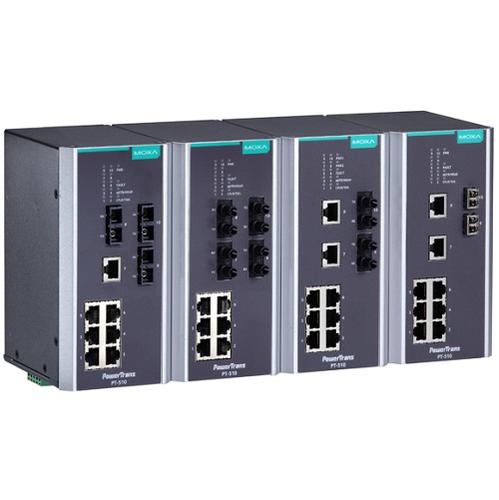

Moxa PT-510-MM-SC-HV Managed Switch
Normally In Stock
Code: 26321
Moxa PT-510-MM-SC-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 10 ports including 8 Fast Copper ports RJ45 (100 Mbps) and 2 Fast Fiber ports SC Multi-Mode (100 Mbps). Operating Temperature: -40 to 185°F. Redundant power inputs 110-220 VDC/VAC VDC Power Supply.
Condition: New
Usually ships Same Day or Next Day$2686.10
Sale Price
$2238.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa PT-510-MM-SC-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 10 ports including 8 Fast Copper ports RJ45 (100 Mbps) and 2 Fast Fiber ports SC Multi-Mode (100 Mbps). The PowerTrans PT-508/510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508/510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (110-220 VDC/VAC VDC), and isolated power inputs (110-220 VDC/VAC VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-508/510 makes network planning easy, and allows greater flexibility by letting you install up to 8/10 Fast Ethernet ports for power distribution applications.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Certification
IEC 61850-3 Certified
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 8 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Fiber Ports Multi Mode Fast (100 Mbps)
2 SC Multi Mode
Switch Ruggedized
Extended Temperature
Switch Management
Managed
Switch Temperature Range
-40F To 185F
Switch Voltage Input
110 VDC
Switch Voltage Input
110 VAC
Switch Voltage Input
220 VAC
Switch Voltage Input
220 VDC
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber SC Port Multi
Switch POE Ports
No POE Ports
Switch Copper Ports Fast (100 Mbps)
8 RJ45 Ports
Switch Total Ports
10
Switch Power Redundancy
Redundant Power Supplies
Switch Model
Moxa EDS PT
Switch All Ports
8 Fast Copper RJ45-2 Fast Fiber SC Multi
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
IEC 61850-3 and IEEE 1613 compliant
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Isolated universal 24 VDC or 48 VDC redundant power inputs
Wide 110/220 VDC/VAC power supply range
Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
-40 to 85°C operating temperature range
