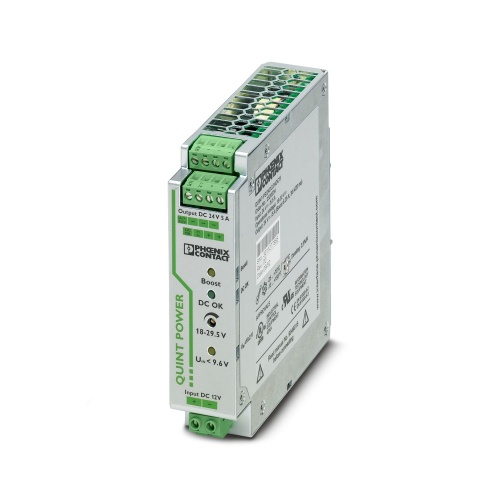

Phoenix Contact 2320131 DC/DC converter QUINT-PS/12DC/24DC/ 5
Normally In Stock
Code: 10683
QUINT-PS/12DC/24DC/ 5 Phoenix Contact QUINT-PS/12DC/24DC/5. DC/DC Converter(Class 1 Div 2) 12 VDC input (9-18Vdc) and 24 VDC output (18-29.5Vdc) 5 amp. Temperature range of -13 F to 158 F. Din rail mount.
Condition: New
Usually ships Same Day or Next Day$569.88
Sale Price
$474.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

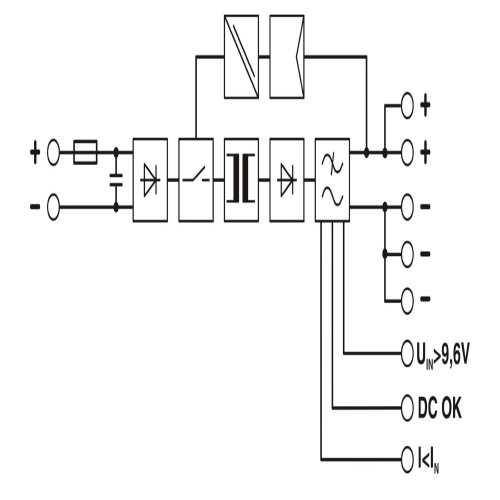

Phoenix Contact 2320131 A primary-switched QUINT DC/DC converter designed for installation on a DIN rail is available, featuring the Selective Fuse Breaking technology, which allows for reliable fault detection and protection of the system. This device accepts a 12V DC input and produces a 24V DC output with a maximum current rating of 5A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
9 VDC - 18 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Preventive function monitoring indicates critical operating states before errors occur
Constant voltage: output voltage regenerated even at the end of long cables
Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125% nominal current permanently
Electrical isolation: for setting up independent supply systems
Downloads
Phoenix 2320131 CAD data International.dxfPhoenix 2320131 CAD data International.pdfPhoenix 2320131 CAD data International.stpPhoenix 2320131 CAD Drawing.dxfPhoenix 2320131 Data Sheet English.pdfPhoenix 2320131 Manufacturers declaration English.pdfPhoenix 2320131 Manufacturers declaration International-2.pdfPhoenix 2320131 Manufacturers declaration International-3.pdfPhoenix 2320131 Manufacturers declaration International.pdfPhoenix 2320131 Product Information English.pdfPhoenix 2320131 Spec Sheet.pdfPhoenix 2320131 Tender Text English.zipPhoenix 2320131 User Manual.pdfPhoenix 2320131 Various English.pdfPhoenix 2320131 Various English.wmv
