Code: 9020

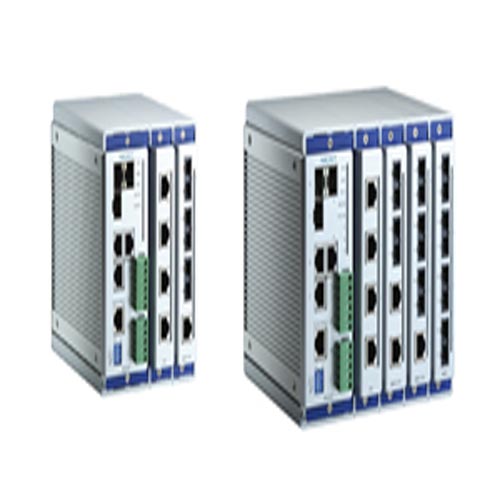

Moxa EDS-P510-T Managed Switch
Normally In Stock
Moxa EDS-P510-T Managed Gigabit Ethernet Switch (Din Rail Mount) with 10 ports including 4 Fast PoE (100 Mbps) RJ45 ports and 3 Fast Copper RJ45 ports (100 Mbps) and 3 Combo Plug-In Gigabit Fiber(10-1000) ports or 2 Gigabit Copper RJ45 ports. Extended Temperature -40 to 75 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$3117.31
Sale Price
$2597.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Moxa EDS-P510-T Managed Gigabit Ethernet Switch with 4 Fast PoE (100 Mbps) RJ45 ports and 3 Fast Copper RJ45 ports (100 Mbps) and 2 Combo Plug-In Gigabit Fiber(10-1000) ports or 2 Gigabit Copper RJ45 ports. The EDS-P510 switches are versatile and can transmit data up to 80 km from the device to the control center with high EMI immunity. The EDS-P510 switches provide up to 15.4 watts of power for each PoE port and allow power to be supplied to connected devices such as surveillance cameras, wireless access points, and IP phones. This Ethernet switch supports a variety of management functions, including Turbo Ring, RSTP/STP, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. Designed especially for security automation applications such as IP surveillance, and gate of entry systems, which can benefit from a scalable backbone construction and Power-over-Ethernet support.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Gigabit Copper Ports
At Least 1 Gigabit Copper RJ45 Port
Min. # Gigabit Copper Ports
At Least 2 Gigabit Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Switch Temperature Range
-40F To 167F
Switch Ruggedized
Extended Temperature
Switch Management
Managed
Switch Copper Ports Gigabit (1000) Mbps
3 RJ45 Ports
Switch Fiber Ports Plug-In Gigabit (1000 Mbps)
3 Plug-In Gigabit Fiber
Min. # Gigabit Fiber SC Ports
At Least 1 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At Least 2 Gigabit Fiber Plug-In Port
Switch POE Ports
4 POE Fast Ports
Switch Power Redundancy
Redundant Power Inputs
Switch Copper Ports Fast (100 Mbps)
7 RJ45 Ports
Switch Total Ports
10
Switch Model
Moxa EDS P
Switch Copper Ports Plug-In Gigabit (1000) Mbps
3 RJ45 Ports (Combo)
Switch All Ports
7 Fast Copper RJ45-3 Gigabit Plug-In Fiber
Switch All Ports
7 Fast Copper RJ45-3 Gigabit Copper RJ45
Switch All Ports
4 Fast POE Copper RJ45-3 Fast Copper RJ45-3 Gigabit Copper RJ46
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
8 built-in PoE+ ports compliant with IEEE 802.3af/at
Up to 36 W output per PoE+ port
3 kV LAN surge protection for extreme outdoor environments
PoE diagnostics for powered-device mode analysis
2 Gigabit combo ports for high-bandwidth and long-distance communication
Operates with 240 watts full PoE+ loading at -40 to 75°C
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery
