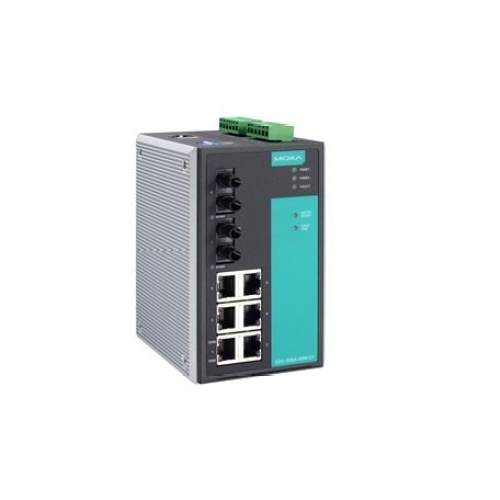

Moxa EDS-508A-MM-ST Managed Switch
Normally In Stock
Code: 8961
Moxa EDS-508A-MM-ST managed Ethernet Switch (Din Rail Mount) with 8 ports including 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Multi-mode ports (100BaseFX) with ST connectors, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$2154.44
Sale Price
$1795.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

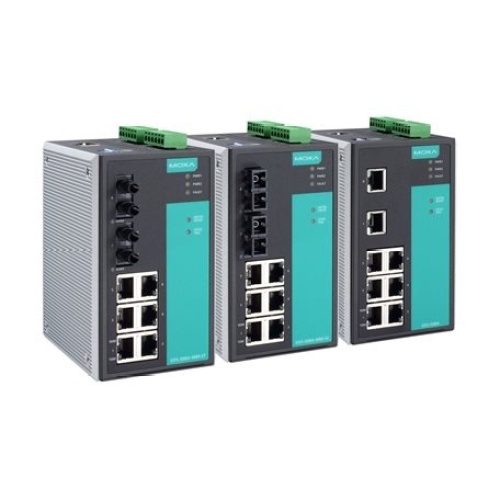

Moxa EDS-508A-MM-ST Managed Ethernet Switch with 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Multi-mode ports (100BaseFX) with ST connectors, 0 to 60 C operating temperature. Suitable for any harsh industrial environment. With their advanced Turbo Ring and Turbo Chain technology (recovery time < 20 ms) and RSTP-STP (IEEE 802.1w-D), the EDS-505A-508A switches increase the reliability and availability of your industrial Ethernet network. Models with an wide operating temperature range of -40 to 75 C are also available, and the switches support several reliable and intelligent functions, including IEEE 1588 PTP, Modbus-TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Fiber Ports Multi Mode Fast (100 Mbps)
2 ST Multi Mode
Switch Voltage Input
12 VDC
Switch Management
Managed
Switch Temperature Range
32F To 140F
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber ST Port Multi
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber ST Port Multi
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Copper Ports Fast (100 Mbps)
6 RJ45 Ports
Switch All Ports
6 Fast Copper RJ45-2 Fast Fiber ST Multi
Switch Model
Moxa EDS
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Supports MXstudio for easy, visualized industrial network management
