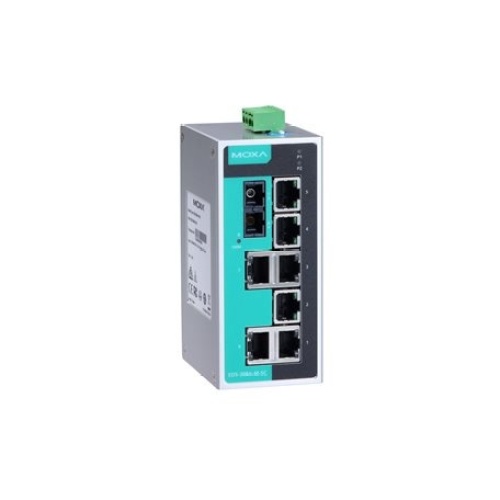

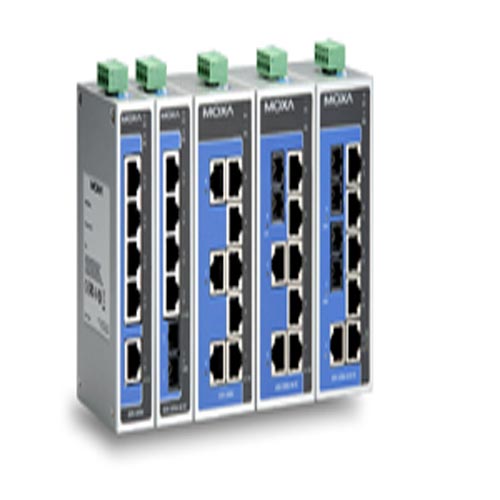

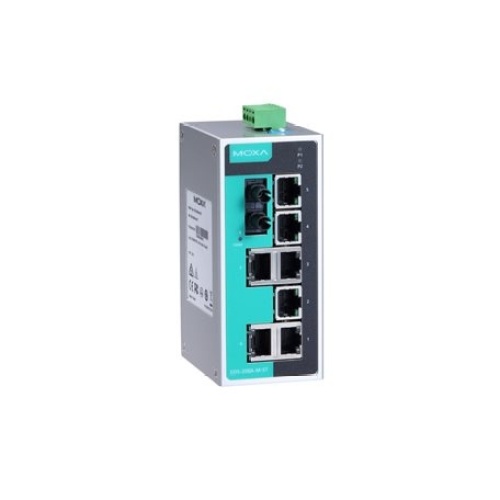

Moxa EDS-208A-M-ST-T Unmanaged Ethernet Switch
Normally In Stock
Code: 8771
Moxa EDS-208A-M-ST-T Unmanaged Ethernet Switch (Din Rail Mount) with 8 ports including 7 Fast Copper ports RJ45 (100 Mbps), and 1 Fast Fiber Multi-mode port (100BaseFX) with ST connectors, Extended Temp -40 to 75 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$466.84
Sale Price
$389.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

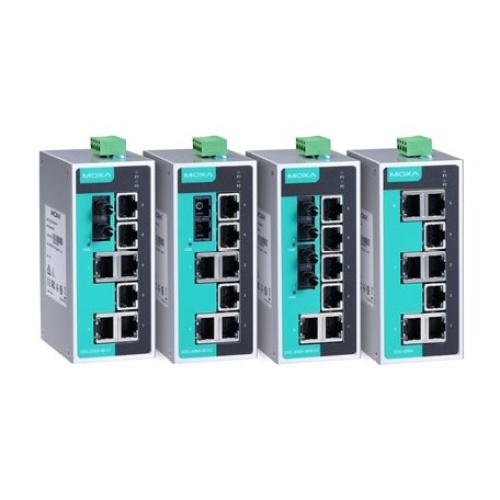

Moxa EDS-208A-M-ST-T Unmanaged Ethernet Switch with 8 ports including 7 Fast Copper ports RJ45 (100 Mbps), and 1 Fast Fiber Multi-mode port (100BaseFX) with ST connectors -40 to 75 C operating temperature. The EDS-205A-208A switches provide 12-24-48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power inputs that can be connected simultaneously to live AC-DC power sources. These switches have been designed for harsh industrial environments.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Switch Fiber Ports Multi Mode Fast (100 Mbps)
1 ST Multi Mode
Switch Voltage Input
12 VDC
Switch Ruggedized
Extended Temperature
Switch Voltage Input
18-30 VAC
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber ST Port Multi
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Copper Ports Fast (100 Mbps)
7 RJ45 Ports
Switch All Ports
7 Fast Copper RJ45-1 Fast Fiber ST Multi
Switch Model
Moxa EDS
Manufacturer
Moxa
Component
Unmanaged Ethernet Switch
Features
10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminum housing
Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/LR/ABS/NK)
-40 to 75°C wide operating temperature range (-T models)
