Phoenix Contact 1480998 Digital module AXL E IOL DI16 M12 6M
Normally In Stock
Code: 836910
Phoenix 1480998 Digital module AXL E IOL DI16 M12 6M
Condition: New
Usually ships within 7-14 days. Call for ship time.$240.53
Sale Price
$200.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

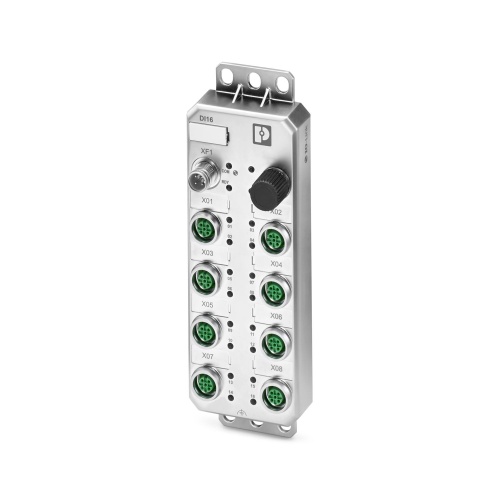

Phoenix Contact 1480998 The Axioline E is a digital input device featuring multiple IO-Link ports and classified as Class A, utilizing an M12 connector with A-coded connections and employing three-conductor and four-conductor connection technologies for its 16 digital inputs. The device operates on 24V DC power supply and boasts IP65/IP67/IP69 degrees of protection.
Specifications
PLC & IO Connection Method
M12 Connector
Manufacturer
Phoenix Contact
PLC & IO Type
Axioline E
PLC & IO Degree of Protection
IP65/IP67/IP69
Component
Digital Module
PLC & IO Transmission Speed
230.4 Kbps (COM3)
Features
Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
Type A port
IO-Link specification V1.1.3

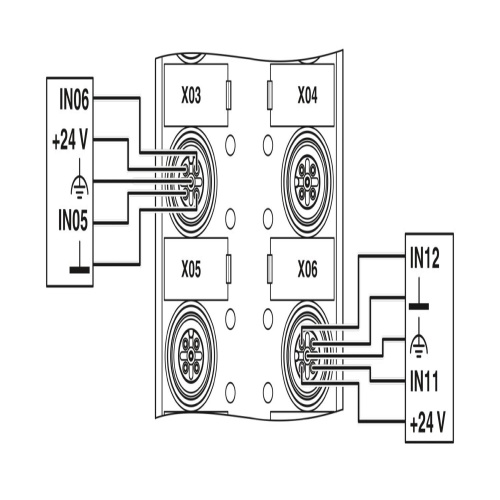

Connection of up to 16 inputs with M12 connectors (A-coded, 5-pos.)
Diagnostic and status indicators
Single-channel diagnostics
Short-circuit and overload protection of the sensor supply
Device rating plate stored
IP65/IP67/IP69 degree of protection
