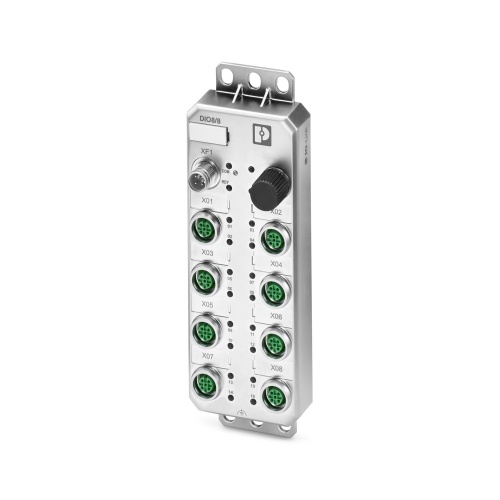

Phoenix Contact 1480997 Digital module AXL E IOL DIO8/8 M12 6M
Normally In Stock
Code: 836909
Phoenix 1480997 Digital module AXL E IOL DIO8/8 M12 6M
Condition: New
Usually ships within 7-14 days. Call for ship time.$281.47
Sale Price
$234.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1480997 The Axioline E is a digital I/O device with IO-Link ports that features Class B connectivity via an M12 connector. It offers 16 digital inputs and 24 V DC power supply, as well as 16 digital outputs with up to 500 mA of current capacity. The connection technology for the outputs utilizes a 3-conductor setup, while the inputs utilize a 4-conducer setup. This device also features IP65/IP67/IP69 degree of protection.
Specifications
PLC & IO Connection Method
M12 Connector
Manufacturer
Phoenix Contact
PLC & IO Type
Axioline E
PLC & IO Degree of Protection
IP65/IP67/IP69
Component
Digital Module
PLC & IO Transmission Speed
230.4 Kbps (COM3)
Features
Connection to an IO-Link master with M12 connector (A-coded, 5-pos.)
Type B port
IO-Link specification V1.1.3
Connection of up to 16 inputs/outputs with M12 connectors (A-coded, 5-pos.)
Diagnostic and status indicators
Single-channel diagnostics
Short-circuit and overload protection of the sensor supply
Device rating plate stored
IP65/IP67/IP69 degree of protection
