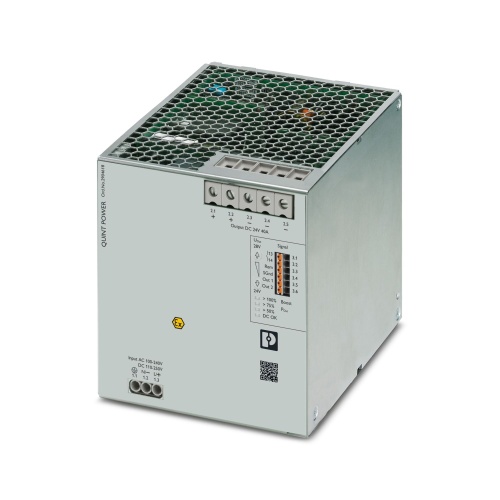

Phoenix Contact 2904618 Power supply QUINT4-PS/1AC/24DC/40/+
Normally In Stock
Code: 830679
Phoenix 2904618 Power supply QUINT4-PS/1AC/24DC/40/+
Condition: New
Usually ships Same Day or Next Day$1051.45
Sale Price
$595.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2904618 A primary-switched QUINT POWER supply designed for DIN rail mounting features adjustable output characteristics, a selective fuse breaking system, protective coatings, and built-in decoupling MOSFET. It accepts a single-phase input and provides a stable output of 24V DC at up to 40A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Output
24 VDC
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Voltage Input Range
110 VDC - 250 VDC
Features
Integrated decoupling MOSFET maximizes system availability and operational safety
Double overvoltage protection (OVP) switches the output off in the event of an error to reliably protect the loads against overvoltages.
Protective coating offers protection against dust, corrosive gases, and humidity
ATEX/IECEx approval in accordance with IEC 60079-0,-7, -11, and -15
Wide temperature range allows use under extreme ambient conditions of -40°C to +75°C
