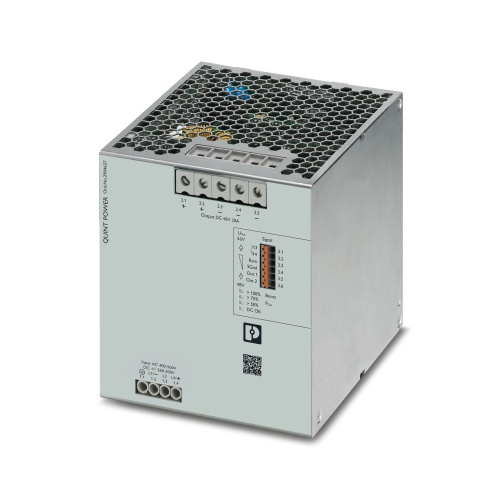

Phoenix Contact 2904627 Power supply QUINT4-PS/3AC/48DC/20
Normally In Stock
Code: 738295
Phoenix Contact QUINT4-PS/3AC/48DC/20 - QUINT, Power supply, 260 VDC - 300 VDC, IP20 - 2904627
Condition: New
Usually ships Same Day or Next Day$989.40
Sale Price
$824.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2904627 The Quint Power primary-switched power supply offers flexibility in choosing the desired output characteristic curve, features Selective Fuse Breaking technology, and includes an NFC interface. It can be powered by a 3-phase source and provides a DC output of 48V at a maximum current of 20A.
Specifications
Power Supply Type
Switching
Component
Power Supply
Manufacturer
Phoenix Contact
Power Supply Voltage Input
440VAC
Power Supply Voltage Input Range
400VAC-500VAC
Features
SFB Technology selectively trips standard miniature circuit breakers
Preventive function monitoring indicates critical operating states before errors occur
Power reserves for easy system extension and starting up difficult loads
High efficiency, long service life, and maximum immunity with integrated gas discharge tube
Available pre-configured: from a batch quantity of just 1
Downloads
083197514_04_LRShip_LR22472797TA.pdf083202739_03_BVShip_44621B0BV.pdf083210725_04_DNVShip_TAA00000BV.pdf083215243_02_CSACertCAUS_800097463.pdf097140603_00_DoC_EU.pdf097307517_00_ULListCAUS_E123528-20210917.pdf097310364_00_ULListHazlocCAUS_E199827-2021-10-22.pdf097639312_01_MDoC_G3_de_en.pdf097695862_01_SEMIF47_SEMIF47.pdfcoc document.pdfeu declaration of conformity.pdfeu declaration of conformity.stpinstallation version_ clipx engineer device parameterization – uniform operating and parameterization software for phoenix contact devices..stpmanufacturer's declaration for noxious gas test.pdfPhoenix Data Sheet.pdfproduct drawing.dxfproduct drawing.pdfQuint_Power_SFB_16zu9_De.wmvQuint_Power_SFB_16zu9_En.wmvsimplified 3d model of the item.pdfsimplified 3d model of the item.stpSpecification Sheet.pdfuk declaration of conformity.pdfvideo_ quint sfb technology.wmv
