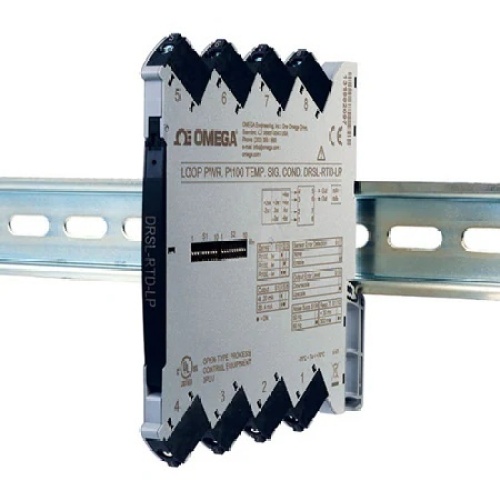

Omega DRSL-RTD-LP RTD INPUT SIG COND LP CE
Normally In Stock
Code: 790164
Omega DRSL-RTD-LP RTD INPUT SIG COND LP CE
Condition: New
Usually ships Same Day or Next Day$200.00
Sale Price
$166.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, Loop Supply, -200 °C to 850 °C I/P, Temperature I/P & Process O/P Class, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Manufacturer
Omega Engineering
Conditioner Supply Voltage
3.3-35 Vdc
Features
2, 3 or 4-Wire Pt100 RTD Input
Powered By the Host (Output) Current Signal Loop
High Accuracy Better Than 0.2°C or 0.1% of Selected Range
Slimline 6 mm (0.24') Housing
ApprovalsCE, UL, RoHS
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Electrical Output0 to 20 mA, 4 to 20 mA
EMC Immunity NoteNAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height113 mm
InstallationPollution degree 2 and measurement/overvoltage category II
Length115 mm
MountingDIN Rail 35 mm Standard, EN 60715
Noise Calibration>60 dB
Operating Temperature, Max70 °C
Operating Temperature, Min-25 °C
Output ValueProcess
Power Consumption1 W, Internal - 0.65 W
Relative Humidity0 to 95% RH (non-condensing)
Screw Terminal Torque0.5 Nm
StabilityLoad Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Voltage Loss3.3 Vdc
Weight70 g
Width6.1 mm
Wire Gauge26 to 13 AWG
