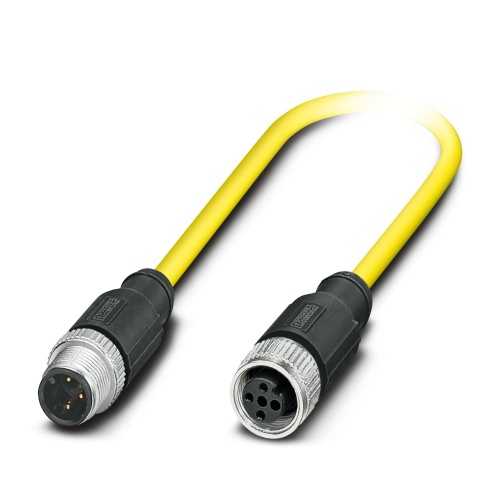

Phoenix Contact 1417886 Sensor/actuator cable SAC-3P-M12MS/ 5,0-542/M12FSSH
Normally In Stock
Code: 73671
Phoenix 1417886 PVC,Yellow 5 m Plug Straight M12 Socket Straight M12 3-position A - standard Shielded Zinc die-cast, nickel-plated Sensor/actuator cable
Condition: New
Usually ships Same Day or Next Day$35.30
Sale Price
$29.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1417886 A sensor/actuator cable with a 3-position configuration is available in a yellow PVC material and features shielding for enhanced signal integrity. The cable has a straight plug with an M12 connection on one end, accepting a code "A", while the other end has a socket with an M12 connection also coded "A". The overall length of the cable is 5 meters.
Specifications
Cable Coding
A - Standard

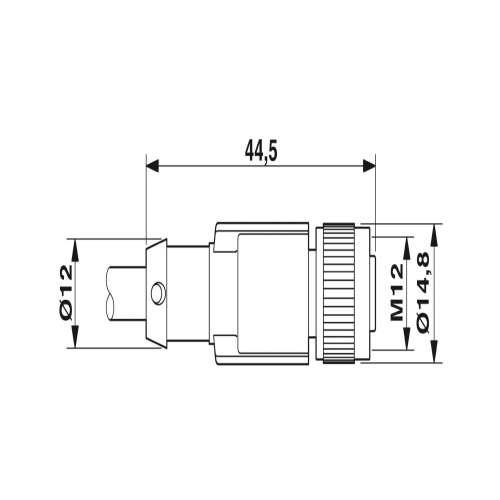

Cable Head 2 Design
Socket Straight M12

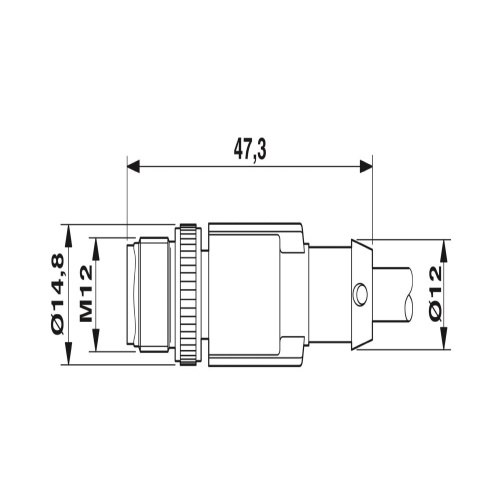

Cable Head 1 Design
Plug Straight M12
Cable Knurl Material
Zinc Die-Cast
Cable Knurl Material
Nickel-Plated
Cable Shielding
Shielded
Cable Number of Positions
3-Position
Manufacturer
Phoenix Contact
Component
Sensor-Actuator Cable
Cable Length
5 M
Cable Material
PVC
Features
Numerous sizes and high numbers of positions – from M8 to M40 as well as 1/2″ and 7/8″ and up to 17 positions in one connector
Quick and reliable connection, even in confined spaces, with M12 push-pull connectors
Advanced Shielding Technology provides a totally protected and reliable shield connection under extreme environmental conditions
Safe, efficient control of electromagnetic hydraulic and pneumatic valves with preassembled valve connectors
Perfectly fitting cabling with customer-specific versions starting from a batch size of 1
