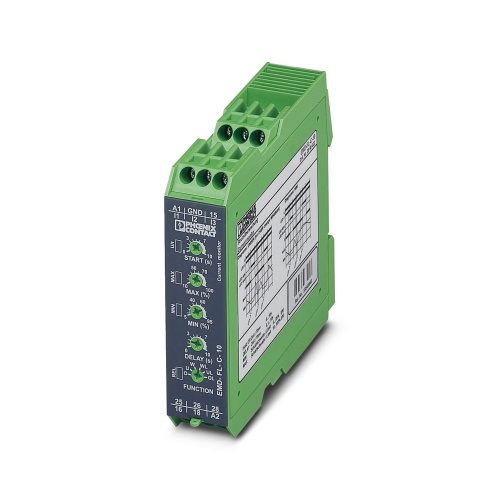

Phoenix Contact 2866022 Monitoring relay EMD-FL-C-10
Normally In Stock
Code: 69144
Phoenix 2866022 Current monitoring relay 2floatingPDTcontacts Screw connection Relays
Condition: New
Usually ships Same Day or Next Day$368.11
Sale Price
$306.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2866022 A monitoring relay is designed to monitor and control 1-phase AC/DC current signals between 0-10 amps, as well as detect overcurrent, undercurrent, and error conditions, storing relevant information in its memory, powered by a wide-range power supply unit with two changeover contacts.
Specifications
Relay Throws
Double Throw
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Floating (Isolated Dry Contacts)
Floating Isolated Contacts
Relay Poles
Double Pole
Component
Current Monitoring Relay
Relay Timing Range
0.1 S - 10 S
Manufacturer
Phoenix Contact
Relay Input Amperage
0 Mamp - 100 Mamp
Relay Load Voltage AC Rating
250 Volt
Relay Application
Window Overcurrent Undercurrent
Features
Adjustable via potentiometer on the front
Separately adjustable startup and response delays
Variable supply voltage range
Downloads
Phoenix 2866022 CAD data International.dxfPhoenix 2866022 CAD data International.pdfPhoenix 2866022 CAD data International.stpPhoenix 2866022 Manufacturers declaration International.pdfPhoenix 2866022 Package Slip International.pdfPhoenix 2866022 Product Information English.pdfPhoenix 2866022 Tender Text English.zipPhoenix 2866022 Various English.pdf
