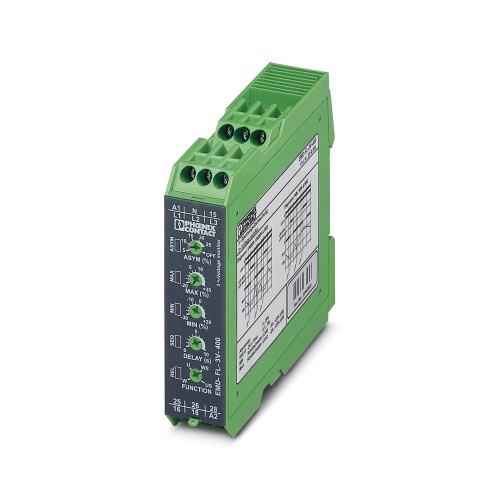

Phoenix Contact 2866064 Monitoring relay EMD-FL-3V-400
Normally In Stock
Code: 69097
Phoenix 2866064 Voltage monitoring relay 2floatingPDTcontacts 3 N ~ 400/230 V Screw connection Relays
Condition: New
Usually ships Same Day or Next Day$358.42
Sale Price
$298.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2866064 A monitoring relay designed to monitor a wide range of three-phase voltage conditions, including AC voltages between 280 and 520 volts, as well as detecting undervoltage, window, phase sequence, phase failure, and asymmetry issues. It also has a power supply unit that can handle a broad range of input voltages and comes equipped with two changeover contacts for added functionality.
Specifications
Relay Throws
Double Throw
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Floating (Isolated Dry Contacts)
Floating Isolated Contacts
Relay Poles
Double Pole
Component
Voltage Monitoring Relay
Relay Timing Range
0.1 S - 10 S
Manufacturer
Phoenix Contact
Relay Load Voltage AC Rating
250 Volt
Relay Application
Window Undervoltage Asymmetry Phase Sequence Phase Failure
Features
Adjustable response delay
Variable supply voltage range
Adjustable asymmetry
Adjustable via potentiometer on the front
Downloads
Phoenix 2866064 CAD data International.dxfPhoenix 2866064 CAD data International.pdfPhoenix 2866064 CAD data International.stpPhoenix 2866064 Manufacturers declaration International.pdfPhoenix 2866064 Product Information English.pdfPhoenix 2866064 Tender Text English.zipPhoenix 2866064 Various English.pdf
