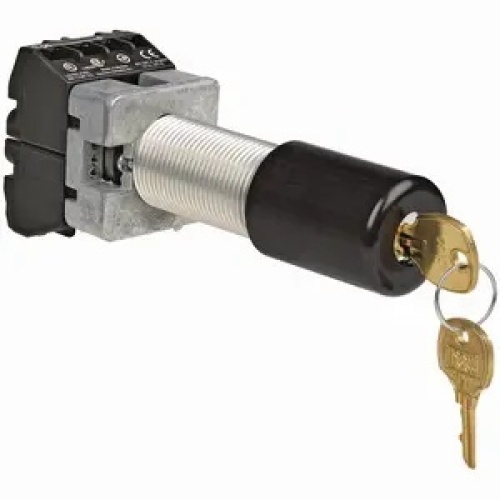

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Killark GO30-31F - Snap Switch, 10 Amp
Normally In Stock
Code: 636930
Killark GO30-31F - G Series - Short SPST Snap Switch Operator - "Off - On"/Blank Nameplate - 10A At 125VAC/5A At 250VAC
Condition: New
Usually Ships Same Day or Next Day$592.24
Sale Price
$493.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark GO30-31F - Operators are all aluminum except for certain movable parts which are stainless steel. All other parts such as screws are either stainless steel or plated steel. Threaded bodies are all 3/4”-14 NPSM thread. Control stations can be grouped into a single assembly thus reducing installation time and cost. Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
(Switching-Indication) Amperage
10 Amp
Manufacturer
Killark
(Switching-Indication) Number of Poles
One Pole
Component
Snap Switch
(Switching-Indication) Actuator Type
Snap Switch
Features
Operators are all aluminum except for certain movable parts which are stainless steel, all other parts such as screws are either stainless steel or plated steel
Threaded bodies are all 3/4”-14 NPSM thread
Control stations can be grouped into a single assembly thus reducing installation time and cost
Junction boxes may be used to mount operators along with glass lens for viewing internally mounted meters. Additional relays, timers, terminal blocks, or other equipment may also be internally mounted to provide a single centralized control unit.
Custom operators other than standard assemblies listed may be ordered by proper catalog number from custom operator ordering system pages C72 & C73
