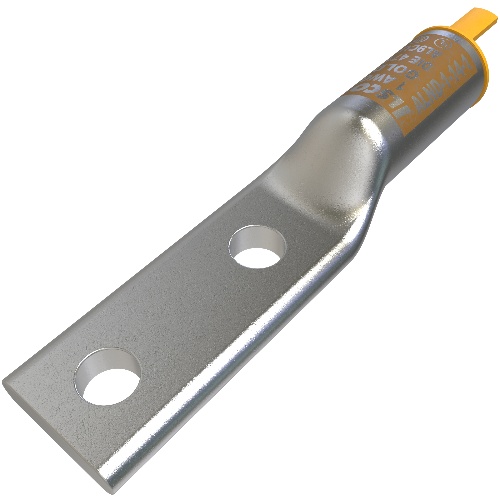

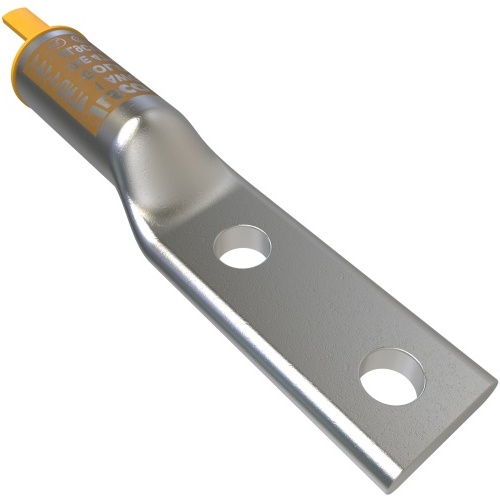

Ilsco ALND-1-14-1 Compression Lug - Aluminum, 1 AWG, Stranded, 35 kV, 1/4"
Normally In Stock
Code: 590295
Ilsco ALND-1-14-1 - Surecrimp Aluminum Compression Lug, Conductor Size 1, 2 Holes, 1/4in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$16.96
Sale Price
$13.05
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-1-14-1 - Surecrimp Aluminum Compression Lug with 1/4" bolt size, 2 holes, and 1" hole spacing. Long barrel, tin plated, UL and CSA listed. Color: Silver, material: Aluminum, connector finish: Tin. Dual rated for copper and aluminum. Temperature rating up to 90°C, voltage rating of 35 kV. DE-OX® included. Suitable for stranded conductors. Dimensions: 0.544" OD, 0.358" ID, 0.97" barrel length. Ilsco Die Index Number: 471.
Specifications
Color
Silver
Terminal Stud Size Opening
1/4"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
1 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
