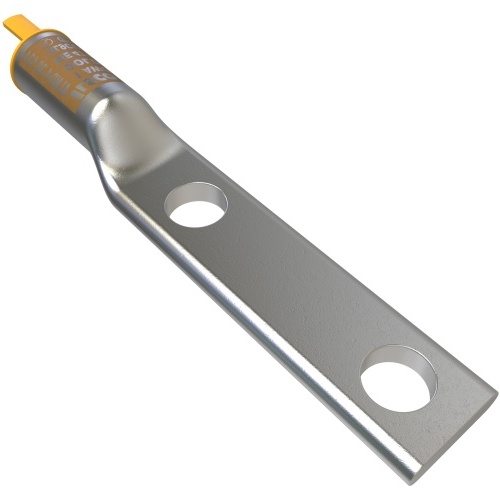

Ilsco ALND-1-38-134 Compression Lug - Aluminum, 1 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 588294
Ilsco ALND-1-38-134 - Surecrimp Aluminum Compression Lug, Conductor Size 1, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$16.80
Sale Price
$12.92
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALND-1-38-134 - Surecrimp Aluminum Compression Lug S-588-3 is a long barrel lug with 1 conductor size, 2 holes for 3/8in bolts, and 1-3/4in hole spacing. It is UL and CSA approved, rated for 35 kV with a 90°C temperature rating. Made of aluminum with a tin finish, it is dual-rated for copper and aluminum conductors.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
1 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
