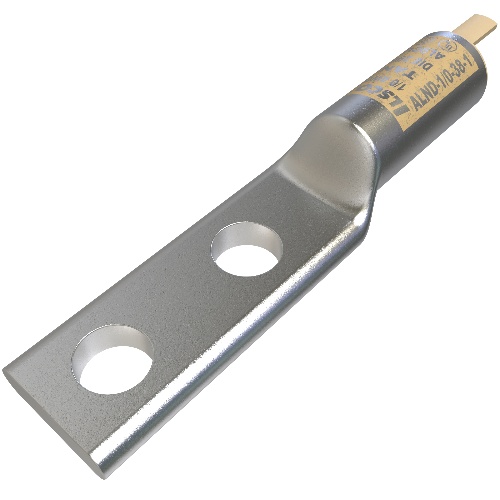

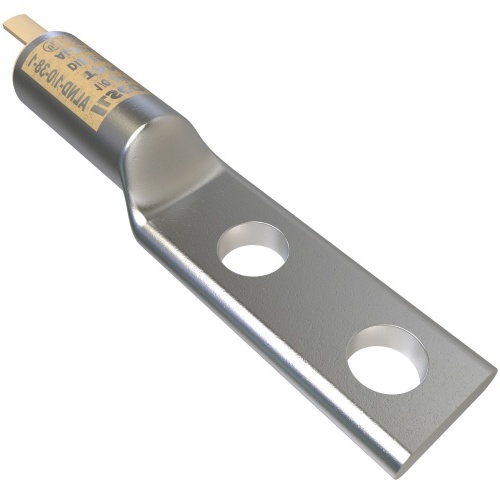

Ilsco ALND-1/0-38-1 Compression Lug - Aluminum, 1/0 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 588293
Ilsco ALND-1/0-38-1 - Surecrimp Aluminum Compression Lug, Conductor Size 1/0, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$36.65
Sale Price
$28.19
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALND-1/0-38-1 - Surecrimp Aluminum Compression Lug for 1/0 conductor size, 2 hole design with 3/8in bolt size, long barrel, tin plated finish. Rated for 35 kV, UL and CSA listed. Tang dimensions: 1.987in length, 0.819in width, 0.214in thickness. Dual rated for copper and aluminum stranded conductors. No sight window, DE-OX® material included.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
1/0 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
