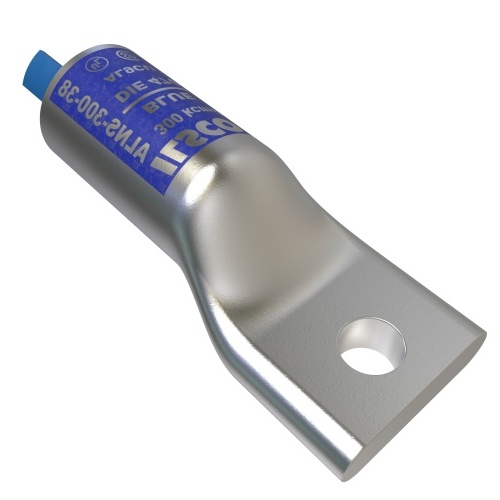

Ilsco ALNS-300-38 Compression Lug - Aluminum, 300 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589382
Ilsco ALNS-300-38 - Surecrimp Aluminum Compression Lug, Conductor Size 300, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$43.17
Sale Price
$33.21
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALNS-300-38 - Surecrimp Aluminum Compression Lug for 300 kcmil stranded aluminum conductors. Tin plated finish, UL, CSA, NEMA Code S-588-3. Long barrel with 3/8in bolt size. 35 kV voltage rating, 90°C temperature rating. One-hole design, tang thickness of 0.36in. Mounting hole size 0.406in. DE-OX® included, barrel marking for durability.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
300 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
