Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

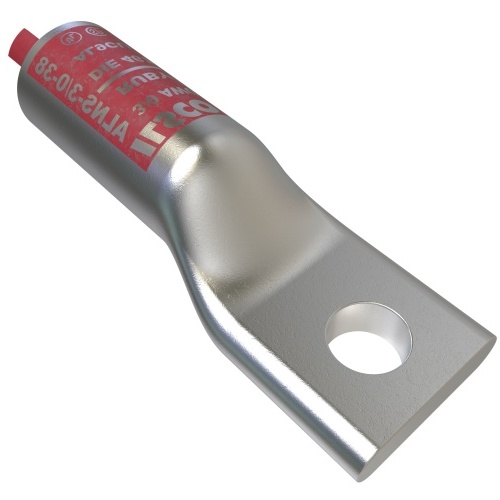

Ilsco ALNS-3/0-38 Compression Lug - Aluminum, 3/0 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 588308
Ilsco ALNS-3/0-38 - Surecrimp Aluminum Compression Lug, Conductor Size 3/0, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$44.23
Sale Price
$34.02
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-3/0-38 - Surecrimp Aluminum Compression Lug in 3/0 conductor size, 1 hole, 3/8in bolt size. Long barrel, tin plated with UL, CSA, NEMA Code S-588-3. Dual rated for 35 kV, suitable for stranded aluminum conductors. Includes DE-OX® technology, with 180° connecting angle. Tang dimensions: 0.266in thickness, 0.9in length, 1.044in width. UL 486A/B Listed.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
3/0 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
