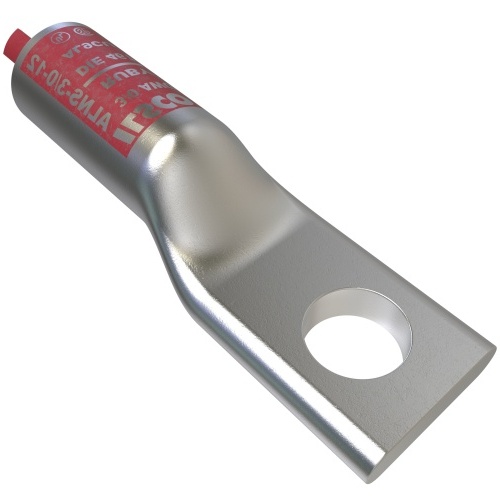

Ilsco ALNS-3/0-12 Compression Lug - Aluminum, 3/0 AWG, Stranded, 35 kV
Normally In Stock
Code: 588307
Ilsco ALNS-3/0-12 - Surecrimp Aluminum Compression Lug, Conductor Size 3/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$45.46
Sale Price
$34.97
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-3/0-12 - Surecrimp Aluminum Compression Lug for 3/0 Stranded Aluminum Conductors. 1-hole design with 1/2in Bolt Size. Long barrel with Tin Plating. UL, CSA, NEMA listed. 35 kV voltage rating, 90°C temperature rating. DE-OX® included. Tang dimensions of 1.25" length, 1.044" width, and 0.266" thickness. 180° connecting angle. Compact size with expansion range from 3/0 Str to 1 Str.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
3/0 AWG
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
