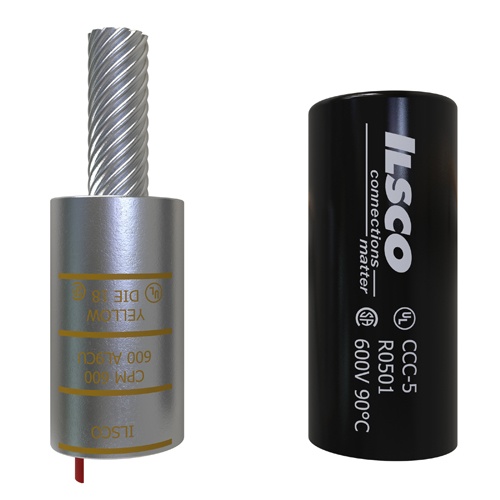

Ilsco CPM-600 Pigtail Adaptor - Copper, 600 MCM, Stranded, 600 V, Silver
Normally In Stock
Code: 588991
Ilsco CPM-600 - Copper Compression Pigtail Adaptor, Conductor Size 600, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$178.67
Sale Price
$137.44
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CPM-600 - The Copper Compression Pigtail Adaptor is UL, CSA, and NEMA rated, with a conductor size of 600 kcmil. It is dual rated, featuring a temperature rating of 90°C and a voltage rating of 600V. This aluminum conductor adaptor comes with an insulating cover and is suitable for compression connections.
Specifications
Color
Silver
Manufacturer
Ilsco
Terminal for Wire Gauge
600 MCM
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
1
Component
Pigtail Adaptor
Features
Barrel manufactured from high strength aluminum alloy
Pigtail manufactured from high conductivity copper
Chamfered barrel
UL Listed and CSA Certified for 600 volts, 90˚ C
Clearly marked with wire size and die index for ILSCO tools, proper number and location of crimps
Prefilled with DE-OX
Color coded end caps inserted in barrel
Supplied with insulating cover
Rated for full ampacity of incoming conductor
